Features & Benefits

FABRICATION SIMPLIFIED

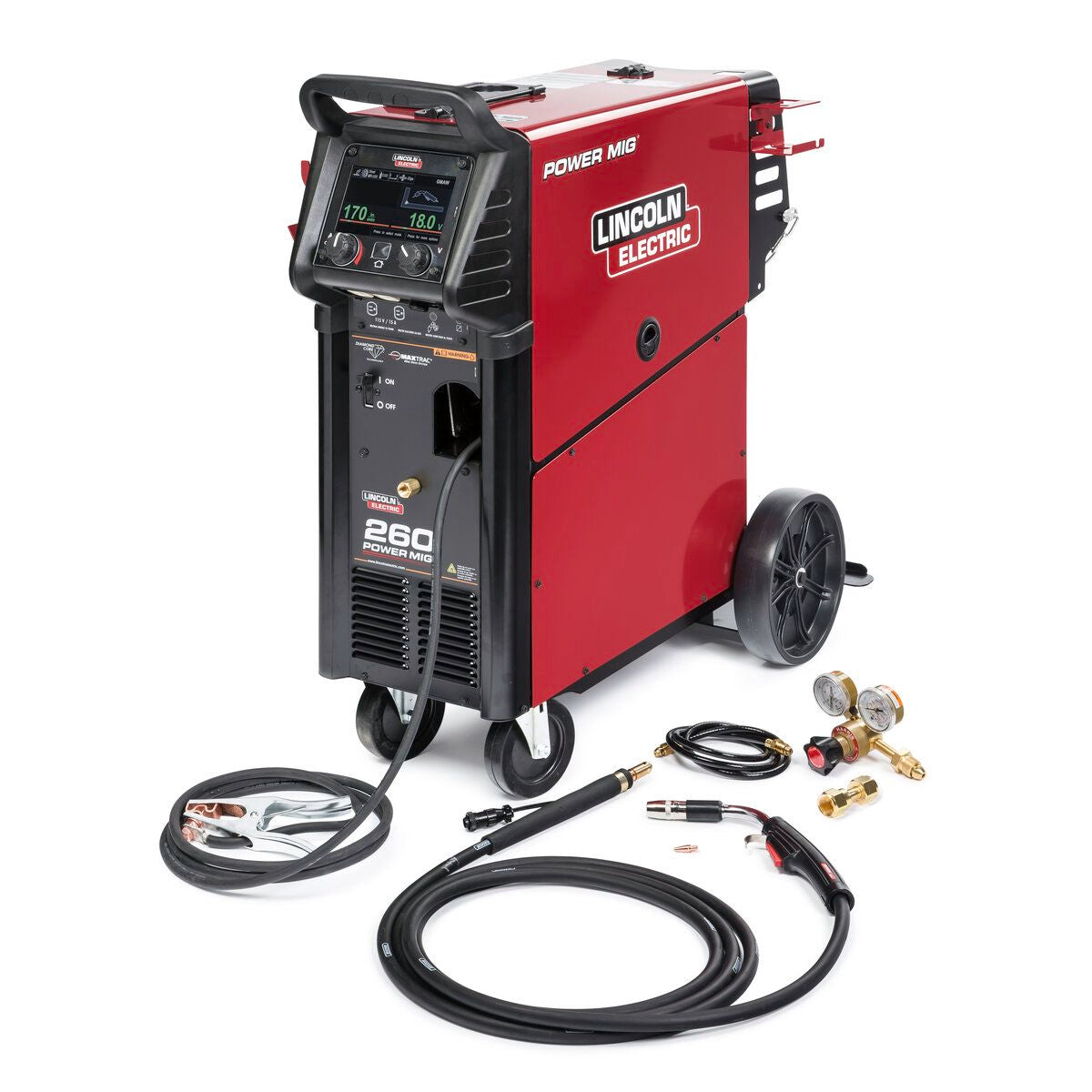

The POWER MIG® 260 welding machine sets the standard for MIG and Flux-Cored welding in light industrial shop fabrication, maintenance, and repair work. The seven inch color display with automatic controls make setup and operation intuitive and simple. The POWER MIG® 260 welder offers superior welding performance and a multitude of professional features.

Simplified

•  Visualize Your Weld with ArcFX™ Technology
• Ready.Set.Weld® Quick Set-Up
• Automatic Settings - Provide Optimal Weld Parameters
• Universal Input Voltage

Innovative

•  7 inch Color Display
• Memory Capability
• Auto Calibration Optimizes Push-Pull Aluminum Performance

Ergonomic

•  Easy to View and Adjust Settings
• Tilting Gas Bottle Tray
• Front Access to 115V Outlet and Gun Connections
• Small Footprint

ADVANCED FEATURES

•  Automatic settings provide optimal weld parameters
• Memory Capability - Ability to load and save weld settings
• Run-in - Adjustable speed at which wire strikes the plate to enhance starting
• Burnback - Adjustable time delay between turning off the arc and the wire feed to prevent wire sticking to the puddle
• Spot Timer - Adjustable arc time for repetitive tack and spot welds

• Processes

  MIG, Flux-Cored

  Input Power

  208/230/460/575/1/60

  Input Current

  59/55/27/21

  Mode

  CV

  Polarity

  DC

  Output Range

  30-300A

  Rated Output

  250A/26.5V/40%

  MIG Wire Feed Speed Range

  50 - 700 in. (1.3 - 17.8 m)

  Dimensions

  18in x 37.3in x 40.4in (457.2mm x 947.42mm x 1026.16mm)

  Weight

  247lbs. (112.039kg)

  MAXTRAC Wire Drive Magnum PRO 250L Welding Gun Quick Storage Accessories 10 ft Work Cable with Clamp Gas Regulator 10 ft Power Cable with Plug
