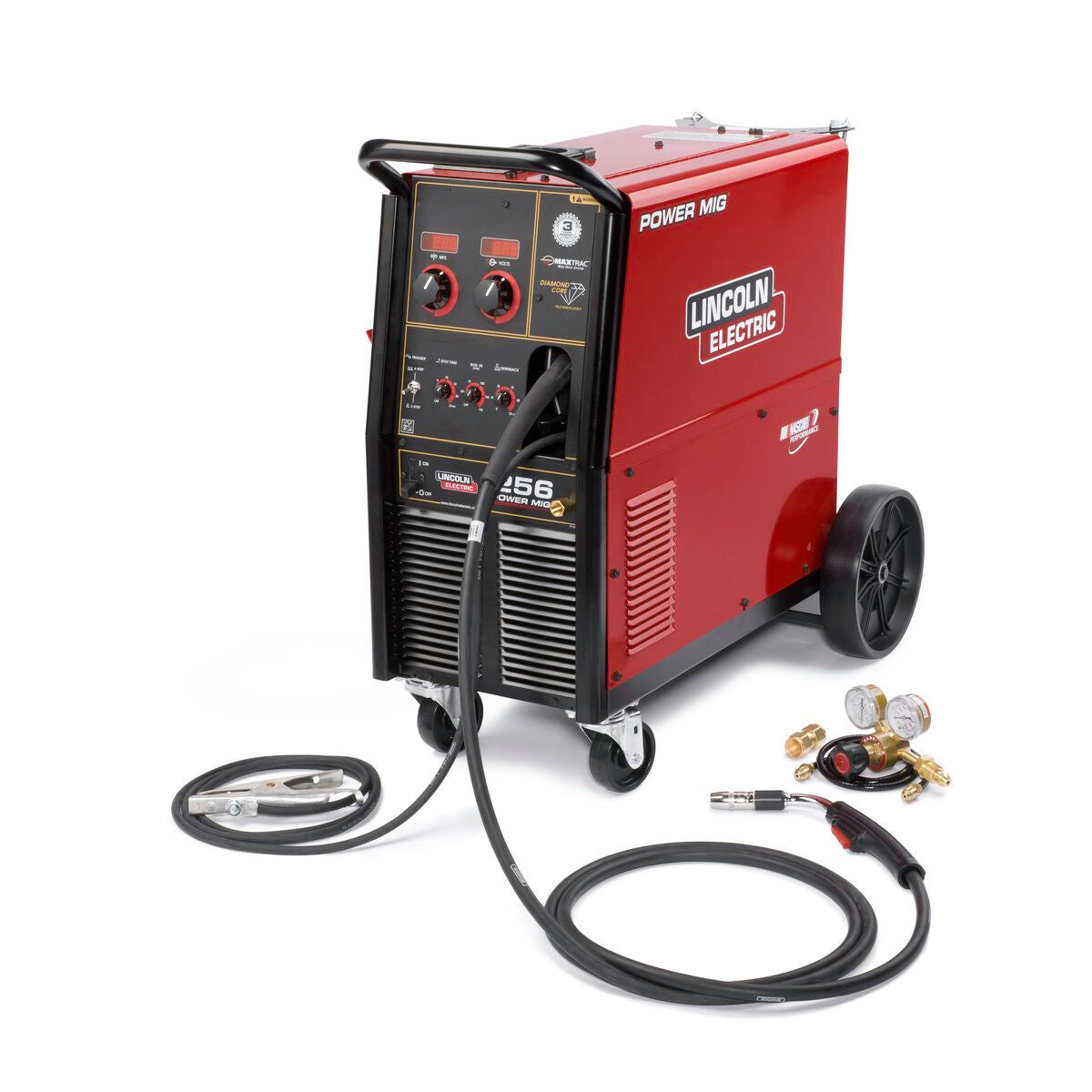

POWER MIG® 256 welder performs MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.
Features & Benefits
POWER MIG.® The Professional’s ChoiceSM
The POWER MIG® 256 sets the standard for MIG and flux-cored welding in light industrial job shop fabrication, maintenance or repair work.
- Diamond Core Technology™ - Delivers a forgiving arc, excellent out-of-position arc stability, low spatter and a wide voltagesweet spot at a given wire feed speed for steel, stainless steel or aluminum.
- MAXTRAC® cast aluminum industrial wire drive - Features dual driven rolls, regulated wire feed speed control, brass-to-brassconnections and Lincoln’s 100% wire supporting split wire guide system.
- Digital meters - For set up, meters display your preset voltage and wire feed speed. During welding, actual voltage is displayed.
- New! Magnum® PRO gun and cable 15 ft. (4.5 m) - Makes it easy to reach your work.
- Copper Plus® contact tips - Larger tip diameter and mass improves heat dissipation to increase tip life.
- Add a spool gun - The POWER MIG® 256 is spool gun ready for the premium Magnum® 250LX gun and spool gun capable with theMagnum® SG (requires adapter).
- 115V auxiliary receptacle - (208/230V model only) to power a grinder or other auxiliary equipment in your work area.
- New! Great value-adding features -

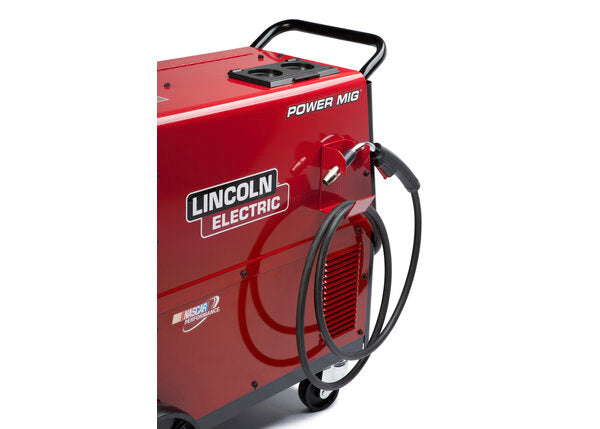

- Coil Claw™ Cable Management system keeps your workstation organized.
- Convenient top-mounted gun expendables tray.
- All metal case front.
NOTE: The POWER MIG® 256 cannot be powered by an engine-driven welder.
Process
MIG; Flux-cored
Processes
MIG, Flux-Cored
Dimensions (mm)(HxWxD)
32" x 19" x 39"
Dual Voltage
Yes
Duty Cycle
250A/26V/40%
Gas Hose Included
Yes
Gun Cable Length
10 ft.
MIG Ready
Yes
Regulator Included
Yes
Shielding Gas Required
No
Digital Display
Yes
Model
Power MIG® 256
Volts
230/460/575
Wire Feed Speed Control
Yes
Welding Amperage Range
30-300 Amps DC
Weight (lb)
220 LB
Input Power
230/460/575/1/60
Input Current
56/52A
Mode
CV
Polarity
DC
Output Range
30-300A DC
Rated Output
250A/26V/40%
Typical Application
Metal fabrication; Maintenance and repair; Farm; Autobody; Light industrial
Cored Wire Diameter
0.035 - 0.045 in. (0.9 - 1.2 mm)
Solid Wire Diameter
0.025 - 3/64 in. (0.6 - 1.2 mm)
MIG Wire Feed Speed Range
50 - 700 in. (1.3 - 17.8 m)
Warranty
3 Years
Dimensions
18.9in x 31.8in x 38.8in (480mm x 808mm x 985mm)
Weight
245lbs. (111.132kg)
- Magnum® PRO 250L gun with 15 ft.(4.5 m) cable assembly (K3081-1)
- Top-mounted gun expendables tray.
- Built-in undercarriage with easy-load gas cylinder platform.
- Work clamp and 10 ft. (3.0 m) cable.
- Drive roll and wire guide to feed both .035 in. & .045 in. (0.9 & 1.2 mm) wire.
- Gas regulator and hose kit for argon blend gases. (For use with CO2 shielding gas, order a Lincoln Electric S19298 CO2 shielding gas bottle adapter.) (K586-1)
- Large color coded procedure recommendation sheet.
