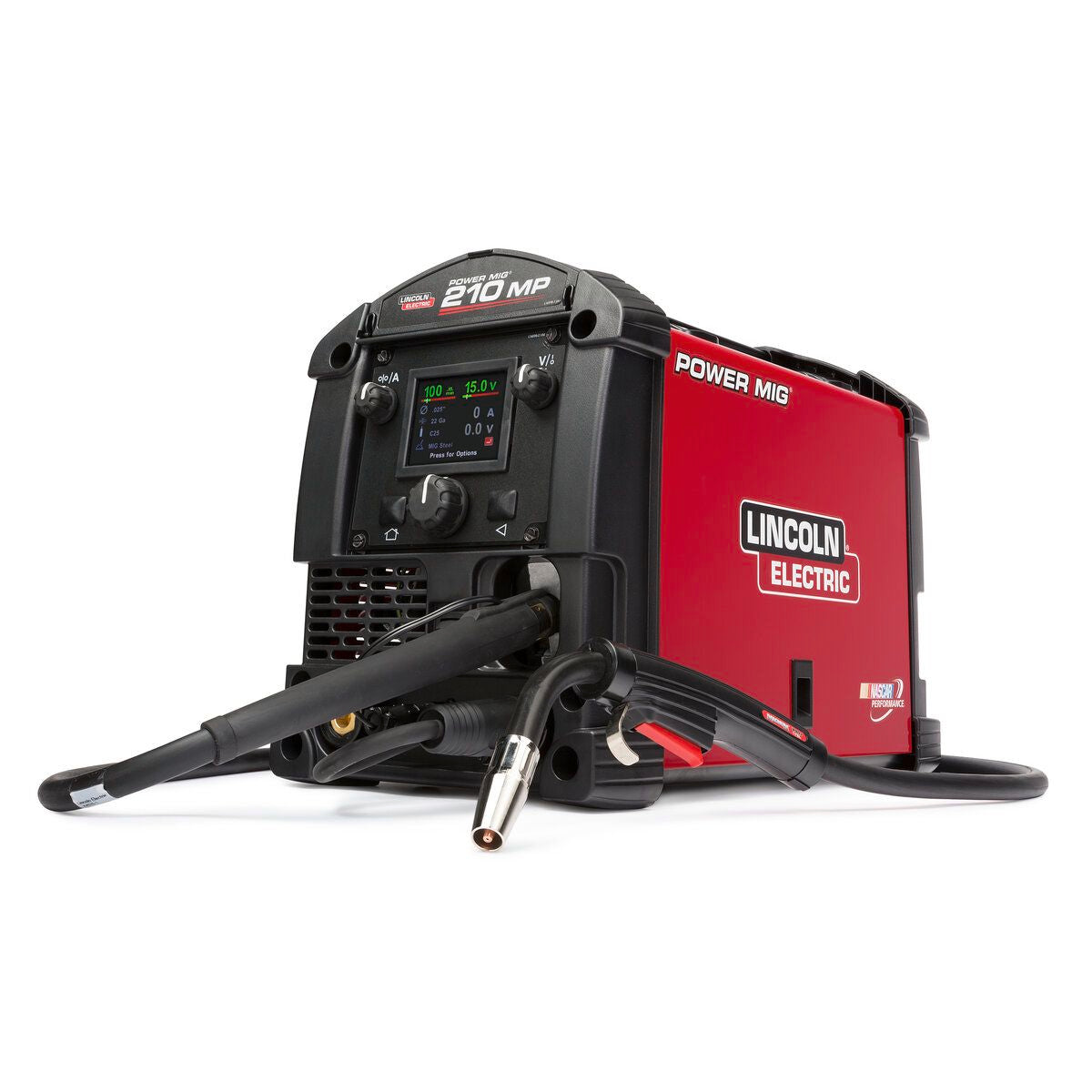

POWER MIG® 210 MP® multi-process welder is portable for MIG, stick, TIG, and flux-cored welding.

Features & Benefits

VERSATILE, RUGGED, SIMPLE TO USE.

The POWER MIG® 210 MP® power supply is a multi-process welder for the hobbyist, educator or small contractor who wants to do MIG welding and a lot more, including stick, TIG and flux-cored welding. The push-and-turn digital controls and color display screen make setup and operation intuitive and easy, while the all-metal wire drive and sturdy sheet-metal construction make it rugged and ready for any job in the home or small shop. The POWER MIG® 210 MP® power supply is the ideal MIG machine for the welding novice, with plenty of room to grow as you gain more experience.

ONE POWERFUL MACHINE

Take it Everywhere, Plug in Anywhere.^™

• Lightweight and portable - just 40 lbs.!
• Dual Voltage Inputs (120V or 230V) means you can plug into any common power supply

Ready. Set. Weld^®.

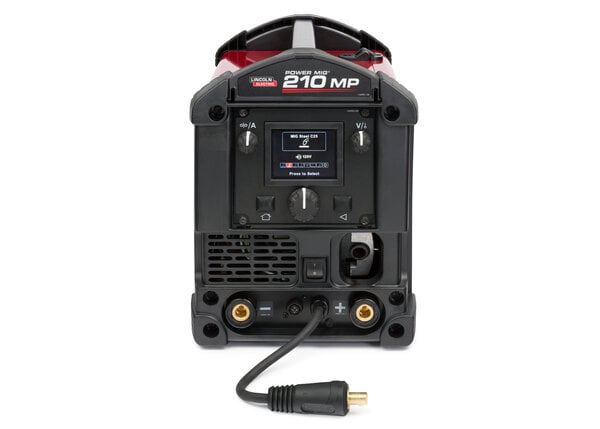

• Intuitive push-and-turn digital controls make setup a breeze
• Large color display guides you through the setup process
• Advanced options and settings are simple to access

210 Amps: The power to tackle any job

• MIG: Weld up to 5/16 in. mild or stainless steel or aluminum* up to 3/16 in.
• Flux-Cored (Self- and Gas-shielded): Tackle the biggest jobs
• DC Stick: Handles up to 5/32 in. stick electrodes
• DC TIG: Enabled by Touch Start TIG^® technology

*Spool gun required (sold separately).

Processes

MIG, Flux-Cored, DC Stick, DC TIG

Input Power

115/230/1/60

Input Current

15A14.7A

Mode

CC/CV

Polarity

DC

Output Range

230V: 20-220 Amps DC, Max. OCV : 56120V: 20-140 Amps DC, Max. OCV : 56

Rated Output

120V: 100A/19.0/40%230V: 200A/24V/25%

Cored Wire Diameter

0.035 - 0.045 in. (0.9 - 1.2 mm)

Solid Wire Diameter

0.025 - 0.035 in. (0.6 - 0.9 mm)

MIG Wire Feed Speed Range

50 - 500 in. (1.3 - 12.7 m)

Dimensions

10.75in x 14in x 19in (273mm x 356mm x 483mm)

Weight

40lbs. (18.144kg)

• Magnum® PRO 175L Gun, 10 ft. (3.0 m) (K4076-1)

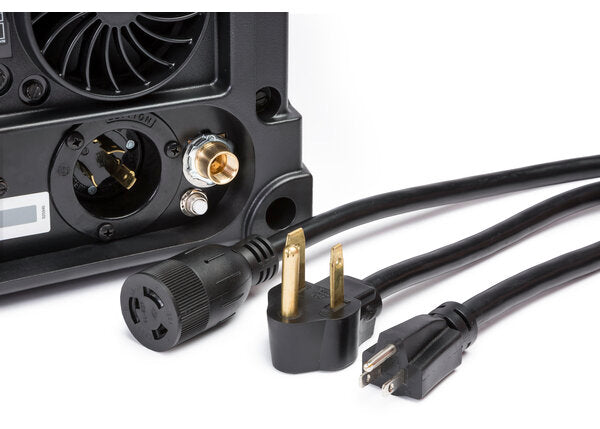

• 120V and 230V Input Cables
• Work Cable and Clamp
•  Electrode Holder and Lead Assembly
• Adjustable Gas Regulator and Hose
• Gas and Gasless Nozzles
• Gun Cable Liner (pre-installed in gun)
• Spindle Adapter
• Sample 1 lb (0.45 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire
• Sample 0.5 lb (0.22 kg) Spool Innershield® NR®-211-MP Flux-Cored Wire
• 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips
• 0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls
• 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
• 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides
