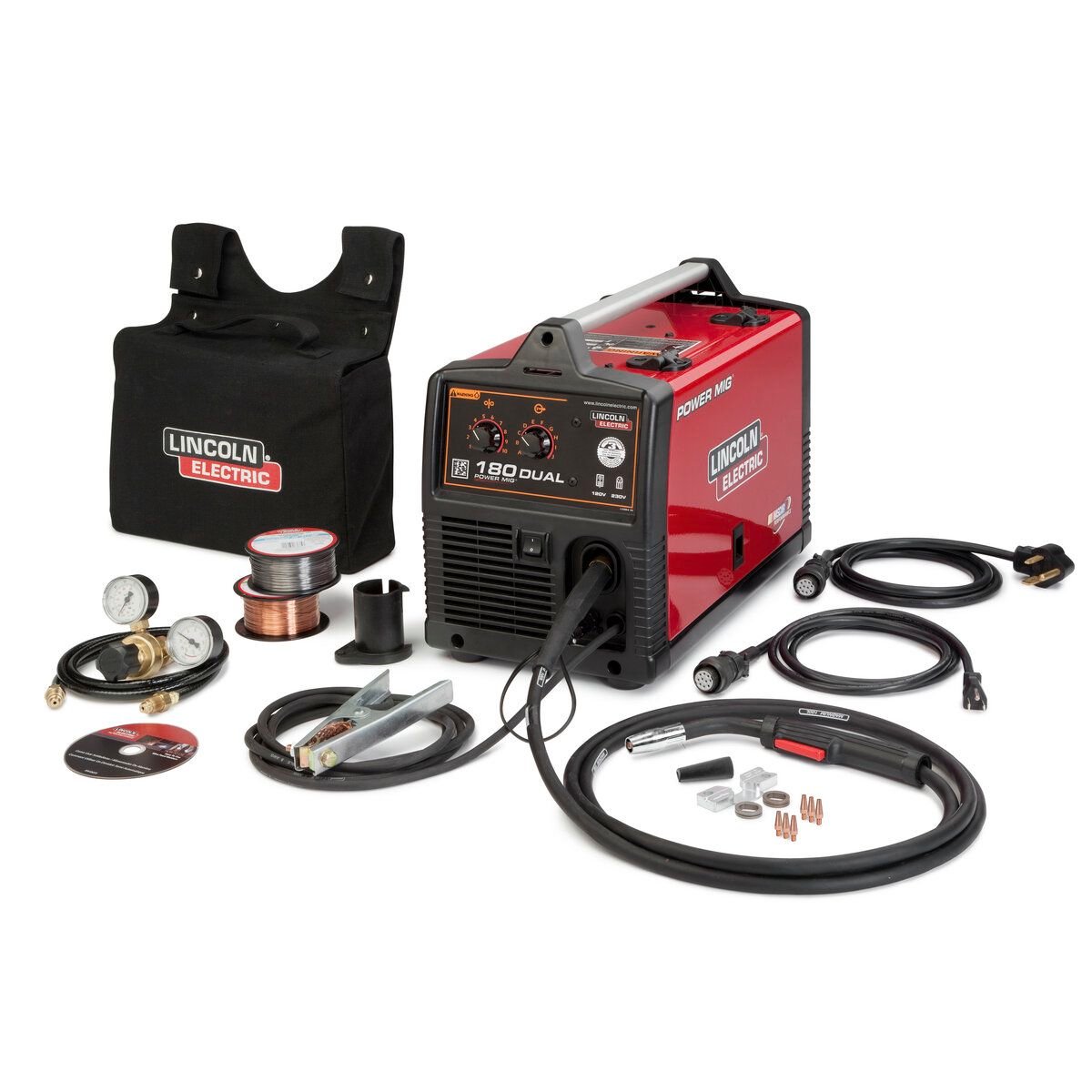

POWER MIG® 180 Dual MIG welder has dual 120 or 208/230 volt input power capability for MIG and flux cored wire welding.

Features & Benefits

POWER MIG.® The Professional’s Choice^SMHave it both ways with the POWER MIG® 180 Dual wire welder. With dual 120 or 208/230 volt input power capability, you can use the same machine to weld at home, in the shop or out on the job site. It’s a great choice for sheet metal and light frame autobody work, farm or small shop applications.

•  Dual Input Power Capability - Select 120 volt input power for home and generator-driven environments or choose 208/230 volt input power for shop applications on thicker materials.
•  Industrial Cast Aluminum Drive - Dual gear-driven drive rolls deliver positive traction. Patented split wire guides ensure optimal wire alignment and a brass-to-brass gun connection aids critical conductivity. A large industrial closed-design drive motor improves torque and enhances trouble-free performance.
•  Diamond Core Technology™ - Delivers a forgiving arc, excellent out-of-position arc action, low spatter and a wide voltage sweet spot at a given wire feed speed for steel, stainless steel and aluminum.
•  Spool Gun Ready - Just remove the standard MIG gun and plug in the economical Magnum® PRO 100SG spool gun (optional) for enhanced aluminum wire feeding performance.
•  No Hassle Tool-less Design - For input power changes, wire spool mounting, wire drive service and polarity changes.

• Processes

  MIG, Flux-Cored

  Input Power

  115/208/230/1/60

  Input Current

  20A

  Mode

  CV

  Polarity

  DC

  Output Range

  230V: 30-180 Amps DC120V: 30-140 Amps DC

  Rated Output

  230V: 130A/20V/30%208V: 130A/17.6V/30%120V:90A/19.5V/20%

  Cored Wire Diameter

  0.030 - 0.045 in. (0.8 - 1.2 mm)

  Solid Wire Diameter

  0.025 - 0.035 in. (0.6 - 0.9 mm)

  MIG Wire Feed Speed Range

  50 - 500 in. (1.3 - 12.7 m)

  Dimensions

  10.2in x 14in x 18.6in (258mm x 357mm x 472mm)

  Weight

  64lbs. (29.03kg)

  • Magnum® PRO 100L Gun, 10 ft. (3.0 m)
  •  120V and 230V Input Cables
  •  Input Cable Bag
  •  Gas and Gasless Nozzles
  •  Gun Cable Liner (pre-installed in gun)
  •  Learn-To-Use DVD
  •  Work Cable and Clamp
  •  Adjustable Gas Regulator and Hose
  •  Spindle Adapter
  •  Sample Spool (0.90 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire
  •  Sample Spool (0.45 kg) Spool NR®-211-MP Flux-Cored Wire
  • .025 in. (0.6 mm) Contact Tips (Qty 3) (KH710)
  • .035 in. (0.9 mm) Contact Tips (Qty 3) (KH712)
  •  .025 - .030 in. (0.6 - 0.8 mm) and .035 in. (0.9 mm) Drive Rolls
  •  .030 - .045 in. (0.8 - 1.1 mm) Knurled Drive Rolls
  •  .025 - .035 in. (0.6 - 0.9 mm) and .045 (1.1 mm) Wire Guides
