Portable welder/generator with DC stick welding and AC generator output, great for home owners and hobbyists.

Features & Benefits

Built for the Outdoors!™

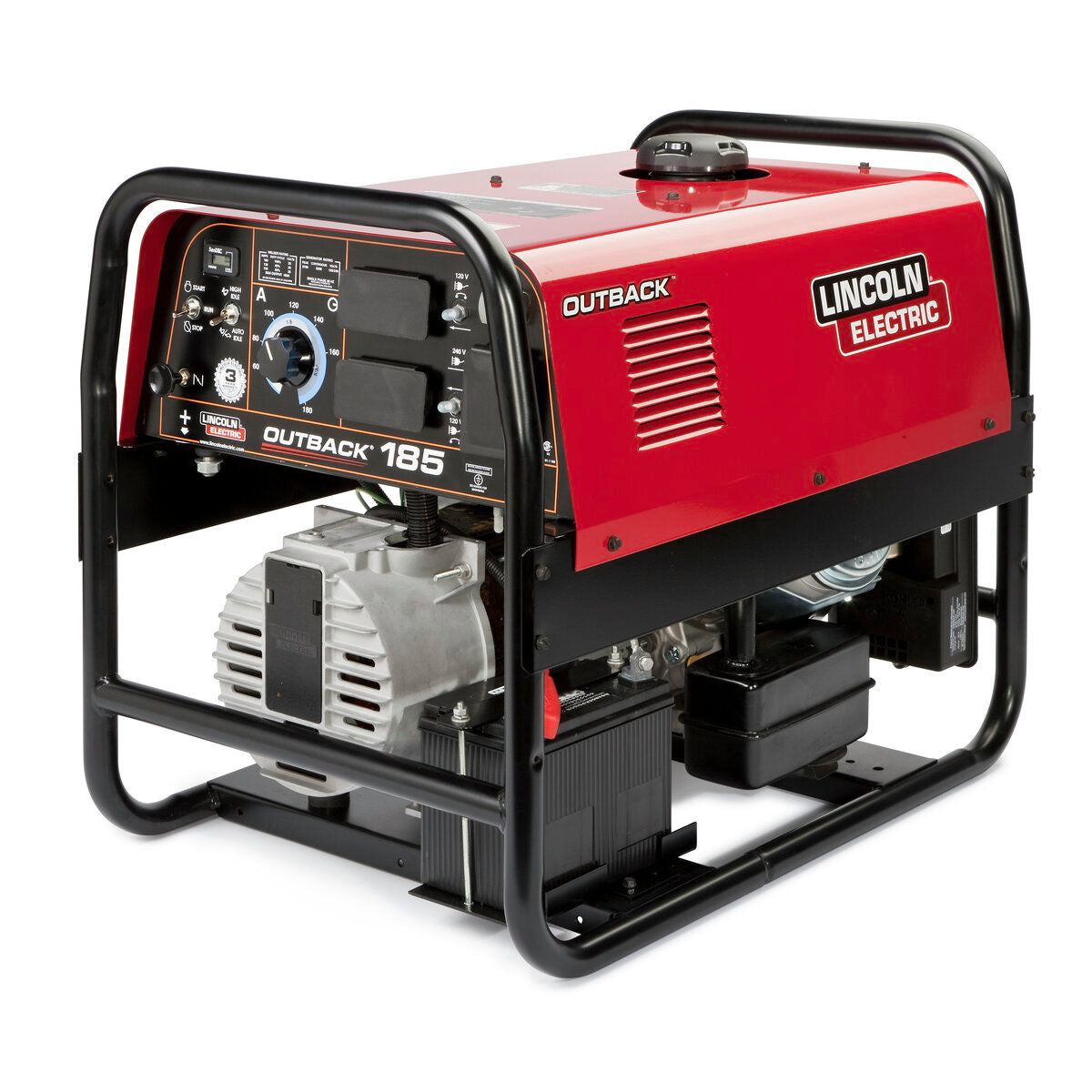

Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding too.

•  Low-Lift™ Grab Bars
  •  More leverage for lifting unit on and off truck beds.
  •  Extra protection against product damage.
  •  Best in class feature!
• All Engine Controls on Front Control Panel
  •  Easy access for starting, especially when mounted on truck beds.
  •  Front panel includes electric start switch and engine choke control.
  •  Best in class feature!
• 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  •  Great for all-around sturdy protection.
  •  Best in class feature!
• 6.8 Gallon (25.7 Liter) Fuel Tank
  •  Less frequent re-fueling, for extended run times.
  •  Large fuel fill opening for easy re-fueling too!
  •  Best in class feature!
• Weld with up to 5/32 in. (4 mm) Stick Electrode
  •  Up to 185 amps of DC output for many applications.
• 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous).
  •  Many uses! Grinder, work lights, pump, motor starting, or emergency power.
  •  Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding.
  •  Plug in a Lincoln Electric Tomahawk® 375 Air to cut metal.

  • Processes

    Stick

    Mode

    CC

    Polarity

    DC

    Output Range

    50-185A DC

    Rated Output

    150A DC/25V/20%130A DC/25V/60%

    Engine Type and Fuel Type

    Kohler®CH440Gas

    Generator Continuous Power

    5200

    Generator Peak Power

    5700

    Horsepower

    14

    Speed

    3600

    Dimensions

    21.8in x 25.6in x 31.5in (553mm x 651mm x 800mm)

    Weight

    295lbs. (133.812kg)

    Machine Only
