Description

Description

Includes

• Industrial holder for Weldon shank 19 mm
• Ejector pins (6.35 x 75 mm and 6.35 x 100 mm)
• MK 2 drift key
• Safety strap
• Hexagon socket wrench KW 5
• Transport case

Features:

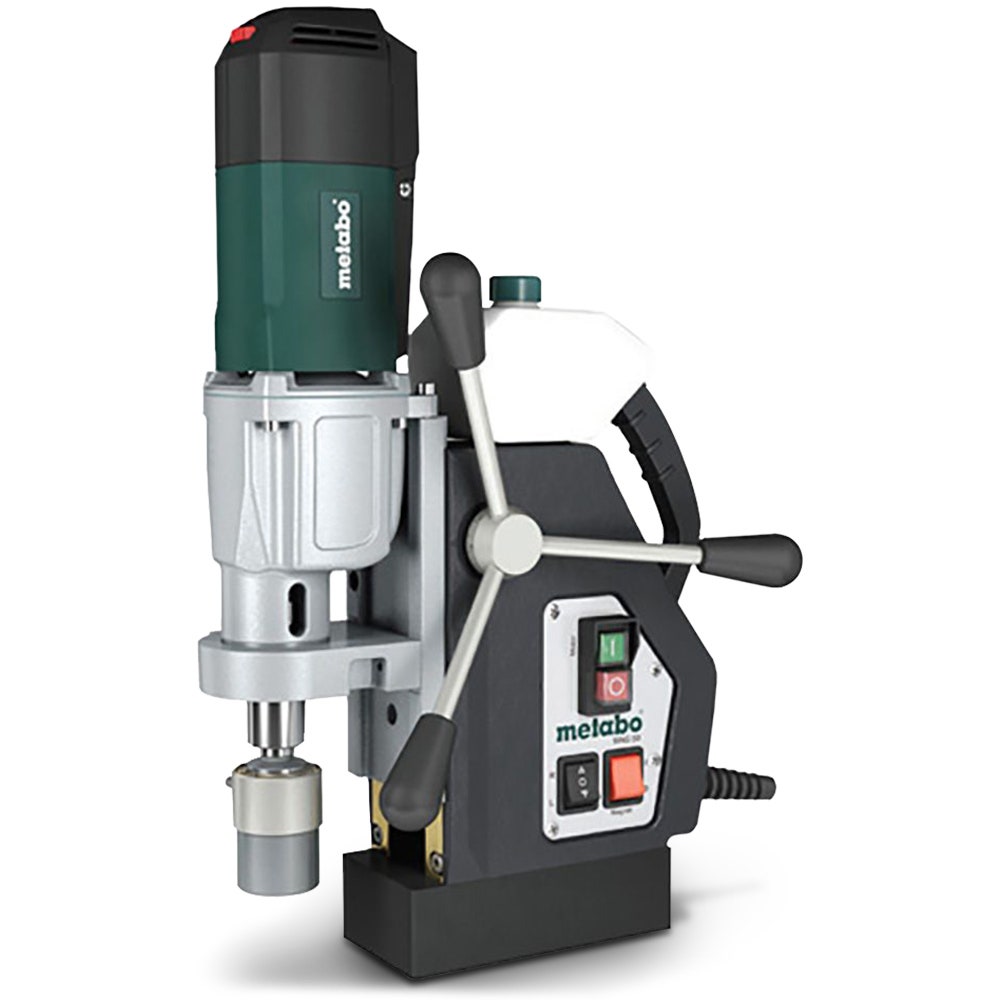

• Powerful magnetic core drill with large lift for core and full drilling
• With electronics and right/left rotation for cutting threads, grinding and lowering
• Robust Metabo Marathon Motor for extra long service life
• Mechanical two-gear drive with oil bath lubrication for tough tasks
• Vario Tacho Constamatic (VTC) full-wave electronics
• Integrated coolant container for optimal cooling of vertical and horizontal cores
• Automatic coolant feed to the tip of the drill bit enables the machine to be used single-handedly
• Magnet base with high holding power for safe operation
• If the supplied safety strap is used, the product may also be used for working on vertical and sloping surfaces above the head
• The MAG 50 uses a 1,200W motor to enable cuts up to Ø 50 mm using HSS or TC core cutters
• Through a twospeed oil filled gearbox a speed range of between 100-250 rpm and 200-450 rpm can be chosen
• Lower speeds are required for use with larger diameter cores
• The working range of the MAG 50 makes it the machine of choice for the majority of on / off-site jobs
