Description

Description

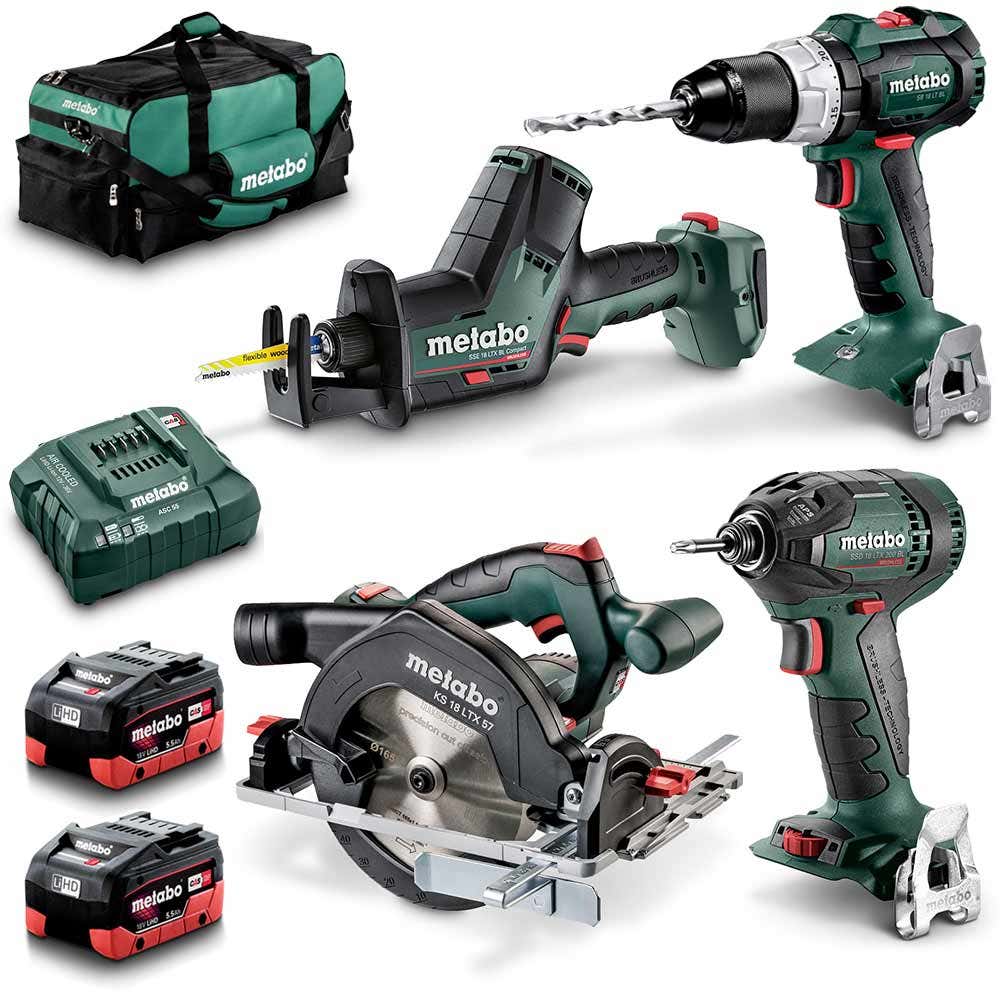

Includes

• 1 X Cordless Compact Sabre Saw - SSE 18 LTX BL COMPACT
• 1 x METABO 18V 13mm Hammer Drill Skin 602316890
• 1 x METABO 18V Brushless 1/4inch Impact Driver Skin 602396890
• 1 x METABO 18V 165mm Circular Saw Skin 601857850
• 2 x METABO 18V 5.5Ah LIHD Battery Pack 625368000
• 1 x METABO 12-36V Air Cooled Battery Charger ASC55 627047000
• 1 x Bag-large 657007000

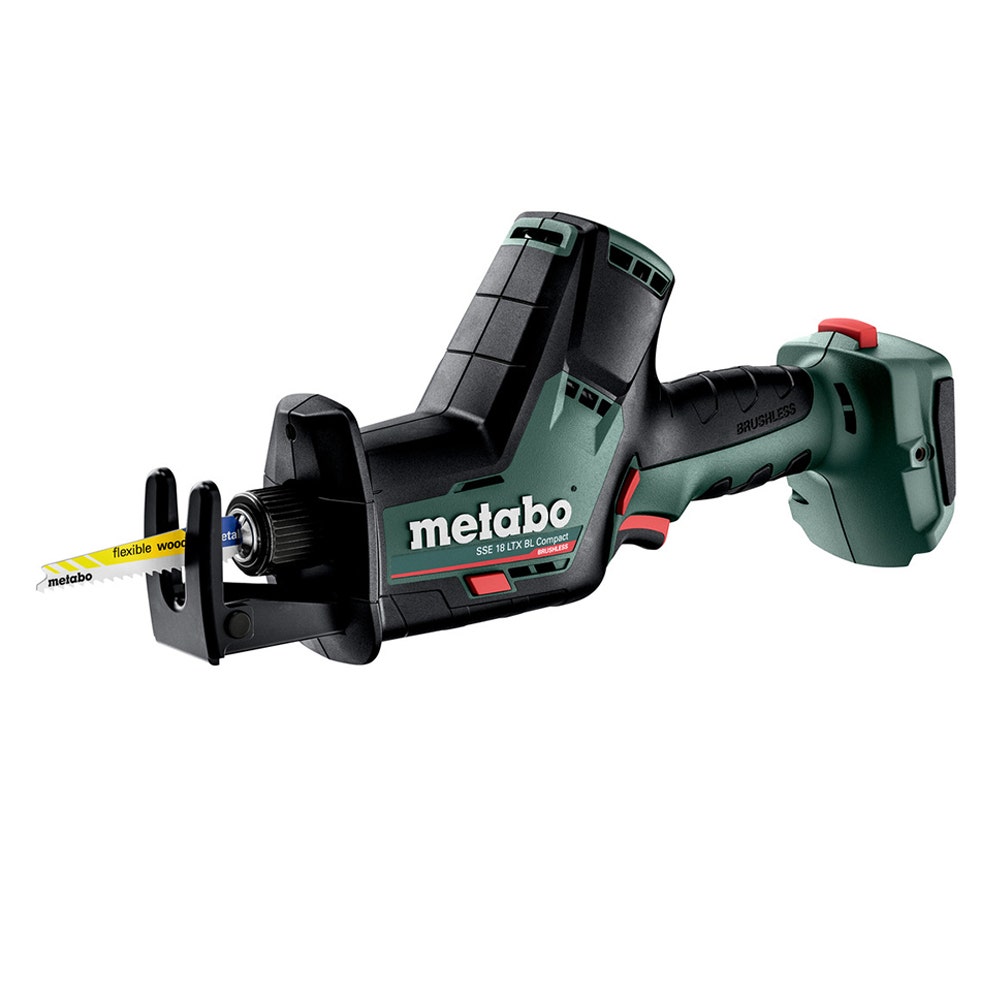

Cordless Compact Sabre Saw - SSE 18 LTX BL COMPACT

• Brushless cordless hammer drill with optimal power for demanding applications
• Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
• High-performance impact mechanism for optimum drilling performance
• Integrated working light to illuminate the contact area
• With handy belt hook and bit case which can be fixed either on the right or left side

Specifications

• Battery voltage: 18 V
• Maximum torque
  • Soft: 34 Nm / 301 in-lbs
  • Hard: 75 Nm / 663.8 in-lbs
• Adjustable torque: 0.7 - 8 Nm // 6 - 71 in-lbs
• Drill-Ø
  • Masonry: 13 mm / 1/2"
  • Steel: 13 mm / 1/2"
  • Soft Wood: 38 mm / 1 1/2"
• No-load speed: 0 - 600 / 0 - 2100 rpm
• Maximum impact rate: 31950 bpm
• Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2"
• Vibration
  • Drilling in metal: 2.9 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Impact drilling concrete: 17.3 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
• Noise emission
  • Sound pressure level: 91 dB(A)
  • Sound power level (LwA): 102 dB(A)
  • Uncertainty of measurement K: 3 dB(A)

METABO 18V Brushless 13mm Hammer Drill Skin 602316890

• Brushless cordless hammer drill with extremely compact design for universal application
• Unique Metabo brushless motor for quick work progress and highest efficiency when drilling and screwdriving
• High-performance impact mechanism for optimum drilling performance
• Integrated working light to illuminate the contact area
• With handy belt hook and bit case which can be fixed either on the right or left side
• Battery packs with capacity display for checking the charge status
• Ultra-M technology: highest performance, gentle charging, and 3 years of warranty on the battery pack.

Specifications

• Maximum torque
  • Soft: 34 Nm / 301 in-lbs
  • Hard: 75 Nm / 663.8 in-lbs
• Adjustable torque: 0.7 - 8 Nm // 6 - 71 in-lbs
• Drill-Ø
  • Masonry: 13 mm / 1/2 "
  • Steel: 13 mm / 1/2 "
  • Soft Wood: 38 mm / 1 1/2 "
• No-load speed: 0 - 600 / 0 - 2100 rpm
• Maximum impact rate: 31950 bpm
• Chuck capacity: 1.5 - 13 mm // 1/16 - 1/2 "
• Vibration:
  • Drilling in metal: 2.9 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
  • Impact drilling concrete1: 7.3 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
• Noise emission:
  • Sound pressure level: 91 dB(A)
  • Sound power level (LwA): 102 dB(A)
  • Uncertainty of measurement K: 3 dB(A)

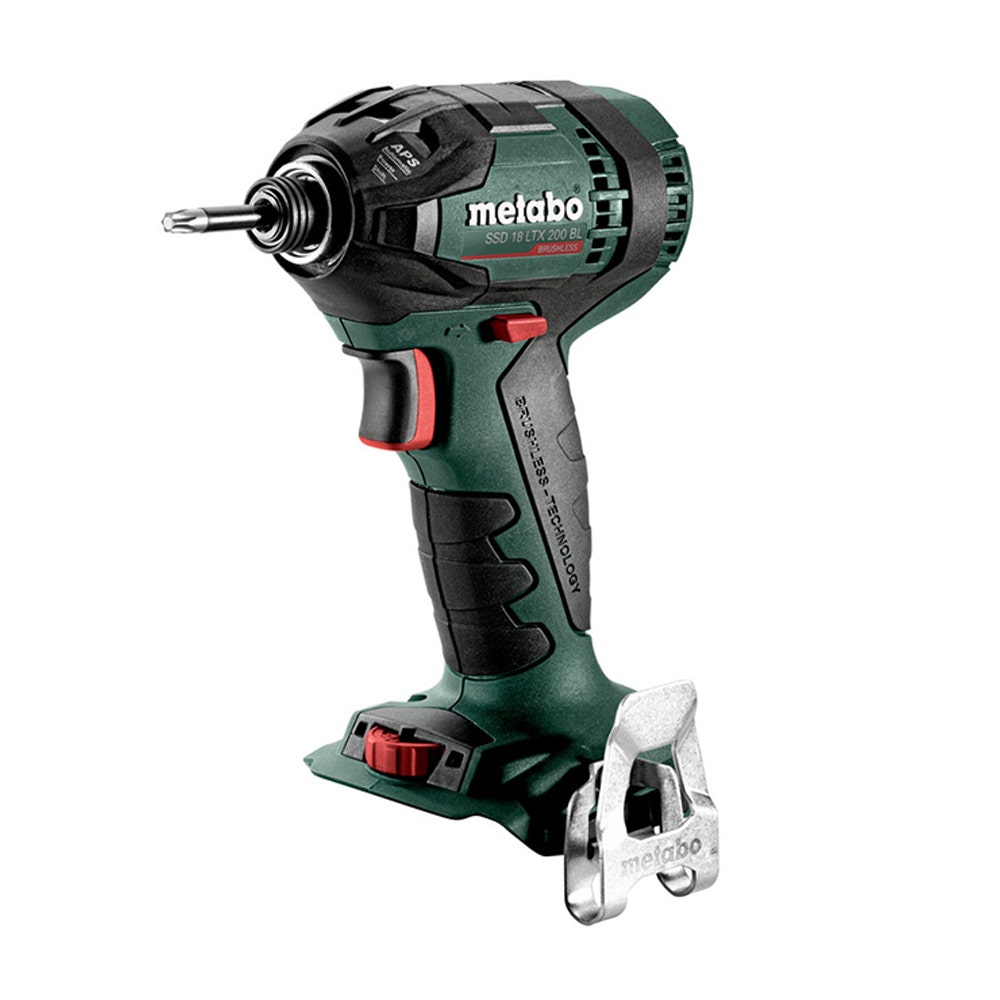

METABO 18V Brushless 1/4inch Impact Driver Skin 602396890

• Compact cordless impact driver with 1/4" hexagon socket and 200 Nm
• Unique Metabo brushless motor for quick work progress and highest efficiency for any application
• Automatic Power Shift (APS) supports working with self-tapping screws: automatic torque reduction after drilling to prevent overtightening.
• Twelve speed/torque levels for a wide range of applications
• Integrated work light for illumination of the work area
• Robust die-cast aluminium gear housing for optimum heat dissipation and durability
• Handy belt hook can be fixed either on the right or left side
• Battery packs with capacity display for checking the charge status
• Ultra-M technology: highest performance, gentle charging, and 3 years of warranty on the battery pack.

Specifications

• Max. screw size: M16
• Max. no-load speed: 2900 rpm
• Maximum impact rate: 4000 bpm
• Maximum torque: 200 Nm / 150 ft. lbs
• Speed/torque levels: 12
• Bit retainer: Hexagon recess 1/4" (6.35 mm)
• Vibration:
  • Impact screwdriving: 9 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
• Noise emission:
  • Sound pressure level: 94 dB(A)
  • Sound power level (LwA): 105 dB(A)
  • Uncertainty of measurement K: 3 dB(A)

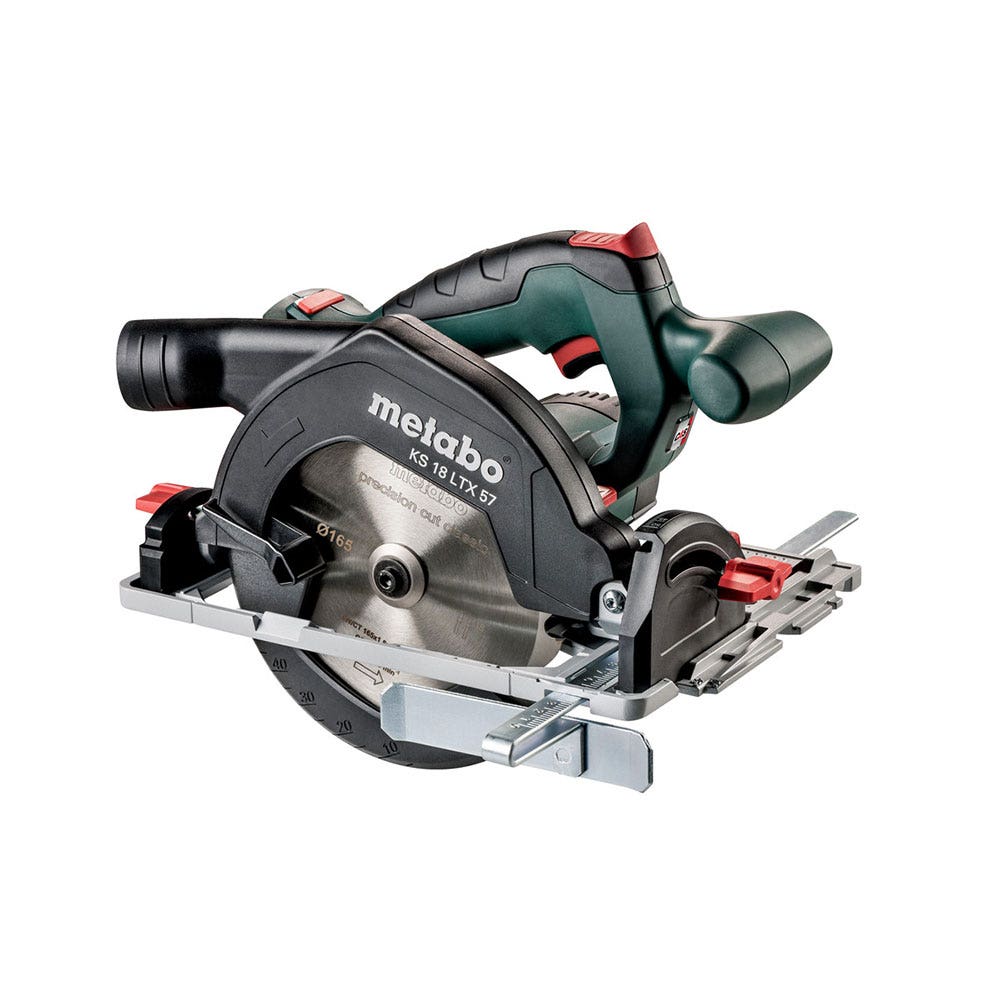

METABO 18V 165mm Circular Saw Skin 601857850

• Powerful, light, cordless circular saw for universal use on construction sites
• Aluminium base plate can be directly used on guide rails from Metabo and other manufacturers
• Fast break stops the saw blade quickly and improves safety
• Accurately angled bevel cuts down to 50°, with a handy snap-in point at 45°
• 0° position re-adjustable for highest cutting precision
• Clearly visible cutting indicator for precise sawing after the initial cut
• Handle with the non-slip soft-grip surface for safe guidance
• Extraction possibility by means of connecting an all-purpose vacuum cleaner

Specifications

• Swivel range from / to:‌ 0 / + 50 °
• Adjustable cutting depth: 0 - 57 mm // 0 - 2 1/4 "
• Maximum cutting depth at 90°: 57 mm / 2 1/4 "
• Maximum cutting depth at 45°: 43 mm / 1 11/16 "
• Max. cutting depth with guide rail: 52 mm / 2 1/16 "
• Saw blade Ø x bore: 165 x 20 mm // 6 1/2 x 5/8 "
• Max. cutting speed: 40 m/s / 129 ft/min
• Vibration
  • Sawing chipboards: 2.5 m/s²
  • Uncertainty of measurement K: 1.5 m/s²
• Noise emission
  • Sound pressure level: 92 dB(A)
  • Sound power level (LwA): 103 dB(A)
  • Uncertainty of measurement K: 3 dB(

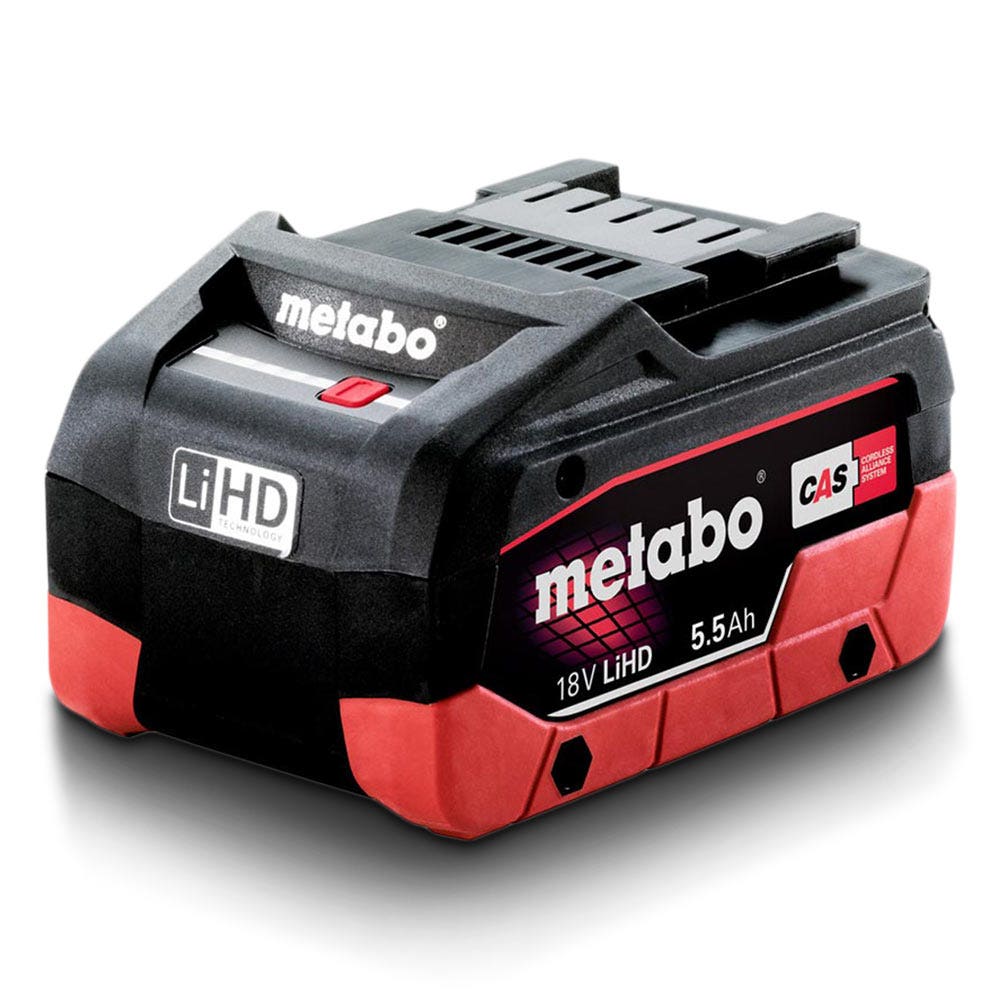

METABO 18V 5.5Ah LIHD Battery Pack 625368000

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation
• Ultra M technology: Intelligent battery management for long-lasting battery packs with a 3-year guarantee
• Patented “AIR COOLED“ charging technology
• Permanent Electronic Single Cell Protection (ESCP) when charging, for particularly long life.
• Processor-controlled charge and discharge management
• Capacity display with almost no self-discharge
• Capacity display with almost no self-discharge
• One battery pack for everything. 100% compatibility with all 18 V machines and chargers of the CAS partners: www.cordless-alliance-system.com

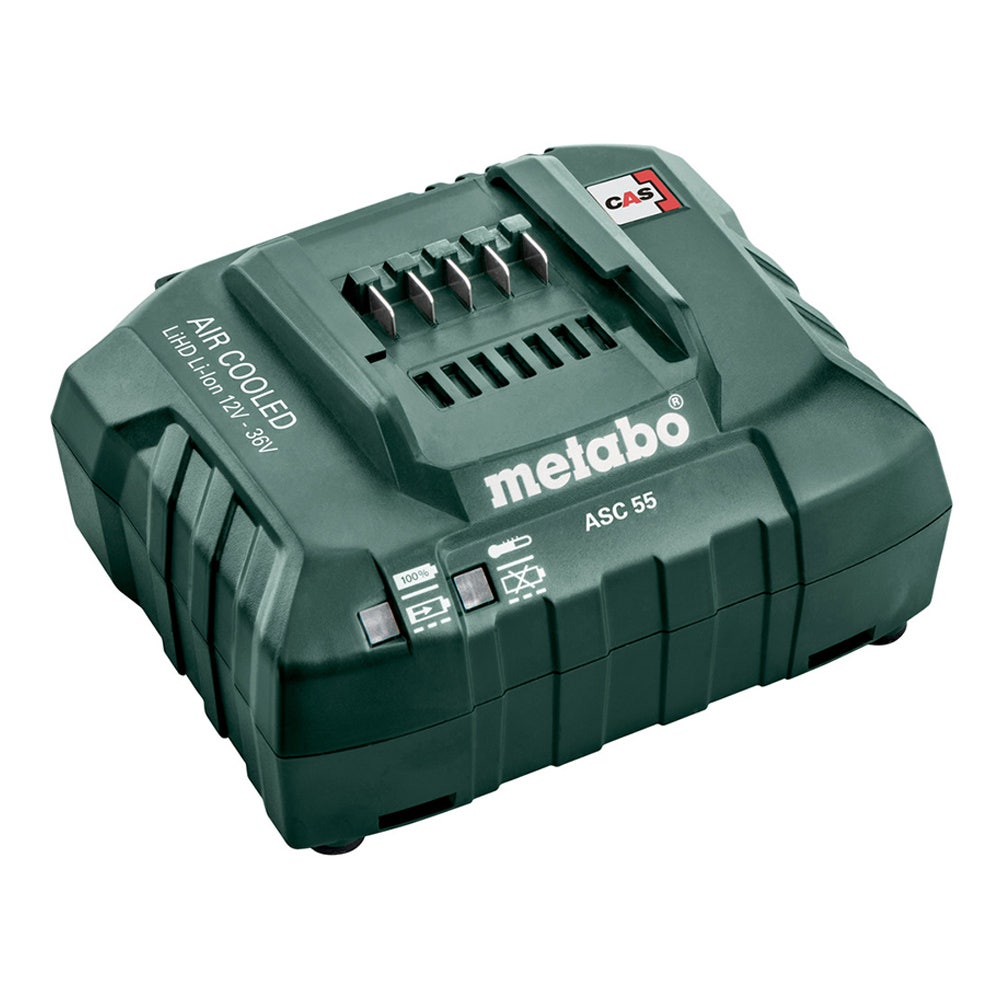

METABO 12-36V Air Cooled Battery Charger ASC55 627047000

• Monitored charging with microcontroller
• Battery diagnosis
• Charge time approximately 30 minutes at 1.5 Ah
• "AIR COOLED" function
• For charging all Li-Power Compact, Li-Power Plus, Li-Power Extreme battery packs
• For charging all Li-Ion and LiHD slide-on battery packs (12 V - 36 V) with adapted battery pack charging current
• Charger switches to compensation charge: to conserve the capacity, the battery pack is charged for 1 second every 45 seconds with 2.5 ampere.
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved
• "AIR COOLED" function: the patented principle is based on air-cooling the battery pack during the charging process. The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature. With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved

Specifications

• Battery voltage: 12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz

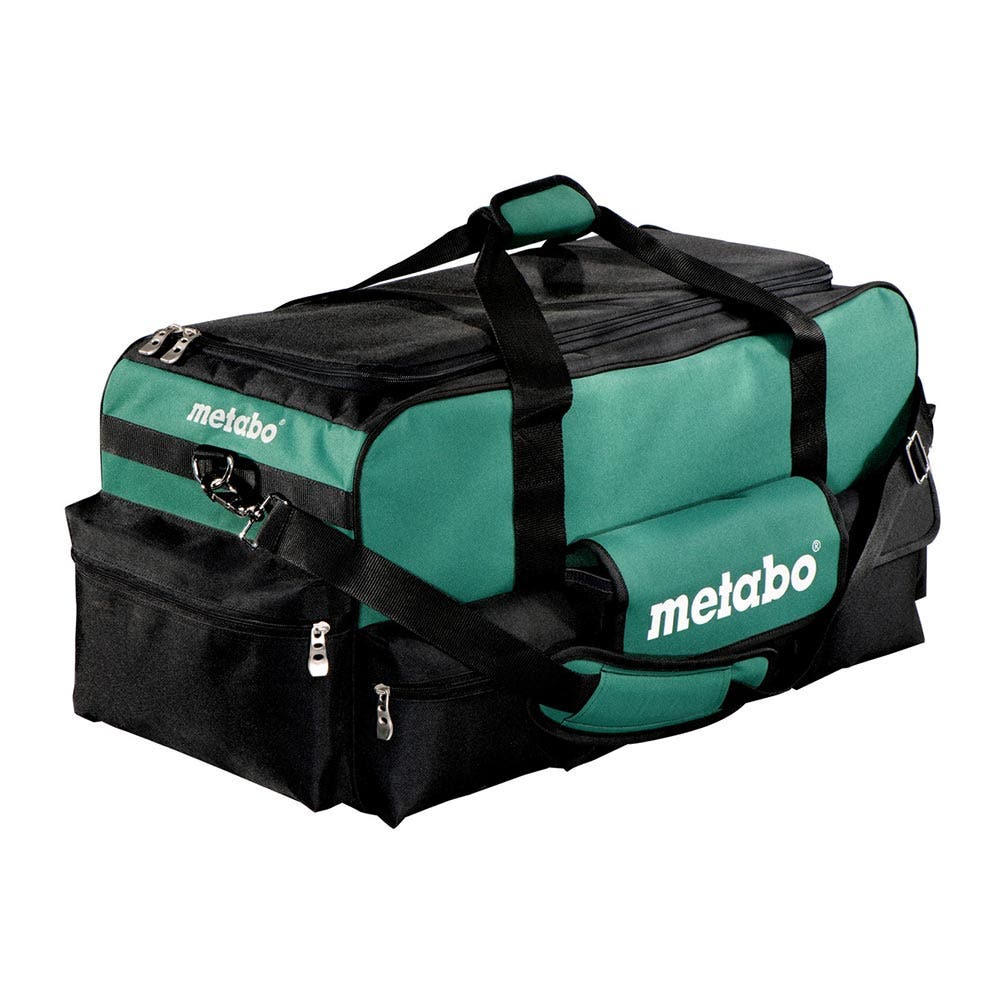

Bag-large 657007000

• The large, practical Metabo tool bag
• On the inside of the bag there are five bag compartments with hook and loop straps to take three battery packs, one charger and accessories
• On the outside there are two spacious pockets with zipper and three other small pockets for quick access
• Comfortable side pads and padded shoulder strap
• Three reflective Metabo logos for optimum visibility on the construction site
• Stable, integrated base plate with strips to protect the bag contents
• Material: water-repellent and tear-proof 600D polyester
• Dimensions (lxwxh): 670 mm x 290 mm x 325 mm
