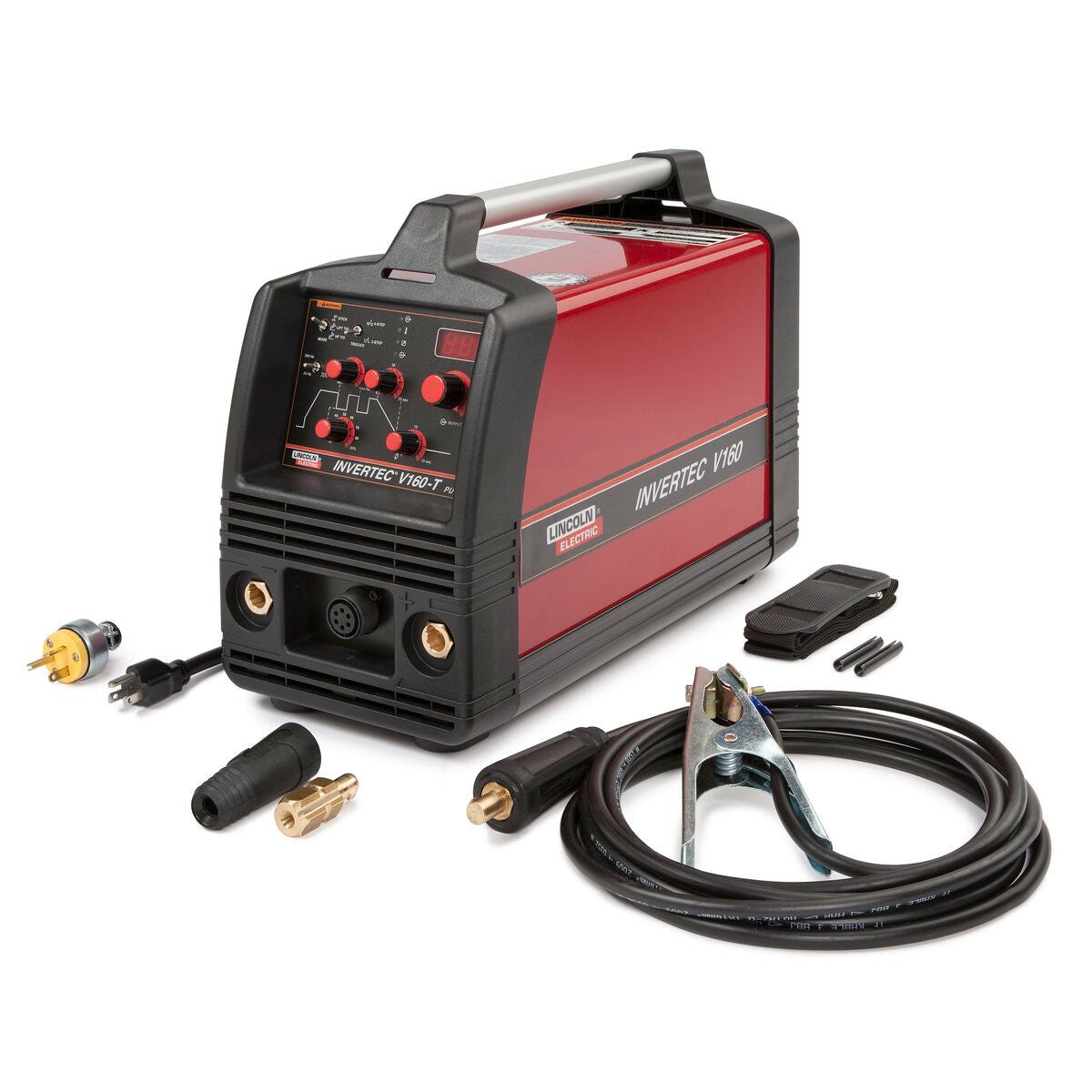

Invertec V160-T welder is a DC TIG inverter for alloy fabrication or critical maintenance welding.

Features & Benefits

The Invertec V160-T is a small but rugged, high-performance DC TIG and Stick welder designed for alloy fabrication, process piping, or critical maintenance work. Weighing in at a portable 24 pounds, the machine automatically connects to 120V or 230V service and features simple torch connections that provide for quick changeover from TIG to Stick welding.

QUALITY WELDS FOR CRITICAL APPLICATIONS

Pulse control

Built in pulsing functions help minimize heat input on thin materials, and provide for a faster freezing weld puddle for uphill welding on curved surfaces such as process piping. The TIG pulser also helps moderate filler metal deposition for consistent bead appearance.

High-frequency TIG starting

Makes it easy to establish an arc under a variety of conditions. Enhances quality by minimizing the potential for weld contamination created by tungsten inclusions in the weld.

Ideally suited for external operations

The Invertec V160-T’s light-weight and adjustable shoulder strap enable welding in the field.

Processes

Stick, TIG, Pulsed

Input Power

115/230/1/50/60

Input Current

20A25A

Mode

CC

Polarity

DC

Output Range

5-160A DC

Rated Output

90A/14.6V/100% TIG 60A/22.4V/100% Stick130A/15.2V/100% TIG 130A/22.2V/100% Stick110A/14.4V/100% TIG 80A/23.2V/100% Stick

Dimensions

8in x 13in x 17in (203mm x 330mm x 432mm)

Weight

33lbs. (14.969kg)

• 115V Input cord (10 ft) and Plug (NEMA 5-15P)
• 20 Amp Plug (NEMA 5-20P)
• Twist-Mate™ Torch Adapter for PTA-9 or -17 One-piece Torch
• Fully Adjustable Shoulder Strap
• Work Clamp and Cable
