Every year approximately 4,000 people are injured on circular saws, corresponding to 16 injuries per working day. Around 26% of serious accidents even result in an accident pension (German Social Accident Insurance (DGUV) statistics ‘Accidents at work 2017). With the new TKS 80 table saw, the risk of most serious cutting injuries during sawing is reduced. While you concentrate on your work, we protect your most valuable tools – your fingers.

• Integrated SawStop technology - The risk of serious cutting injuries is reduced.
• Responsive sensor - If the saw blade comes into contact with the users skin, it is stopped within 5 milliseconds and disappears into the work surface.
• Intelligent cartridge - A cartridge releases a pretensioned spring and pushes an aluminium block into the saw blade. After being triggered, the cartridge is replaced in just a few steps.
• Flexible cutting height - Flexible cutting height up to 80 mm for larger cross cuts.
• Maximum precision - Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left. More space for your hands and a clear view of the workpiece.

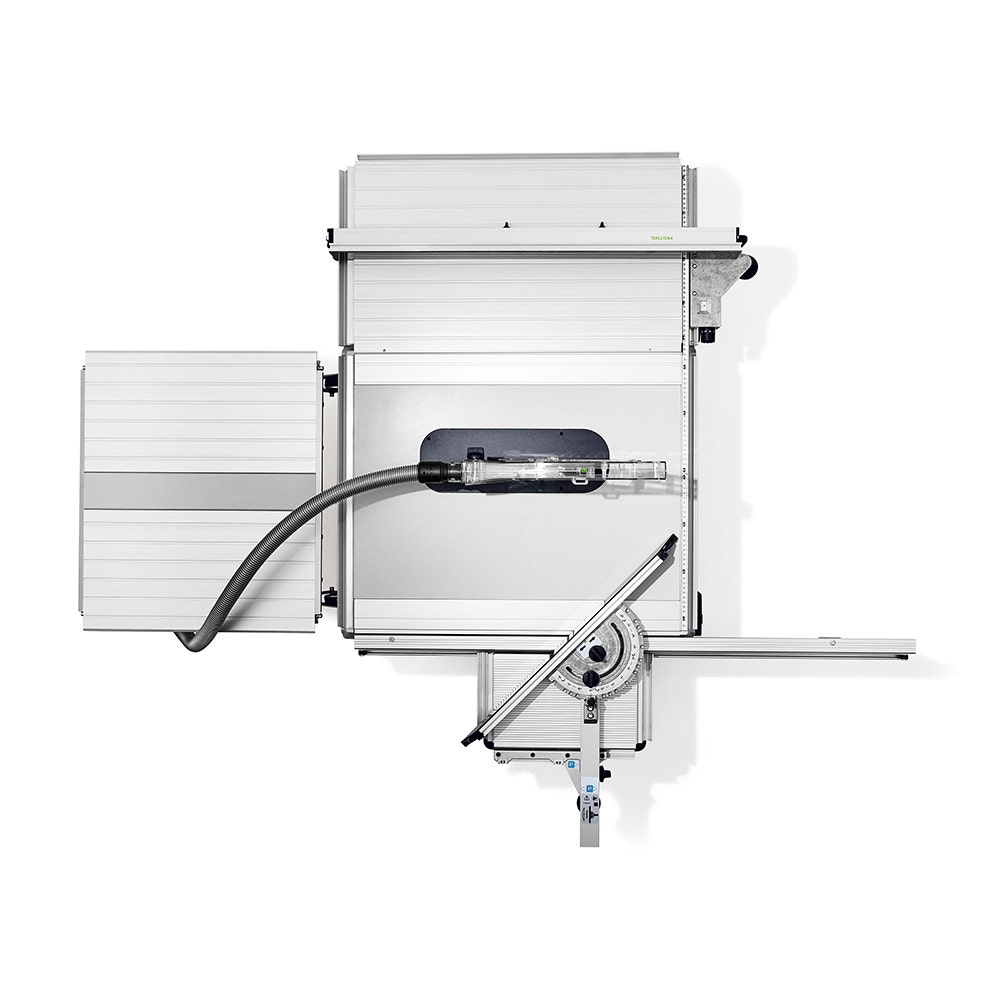

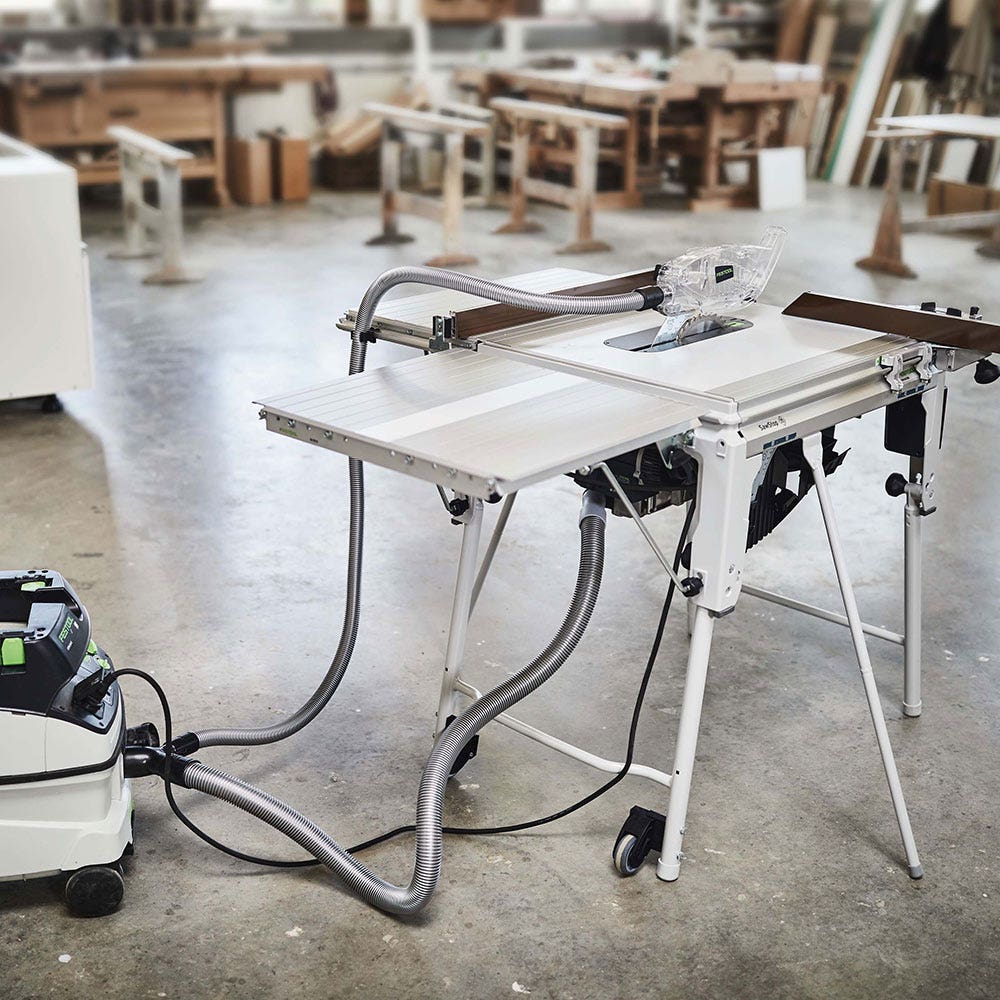

• Comprehensive system accessories - Work surface can be extended in its length and width. Sliding table for cross-cutting up to 920 mm.
• Bypass option - SawStop technology can, if necessary, be deactivated. This means that even conductive materials can be machined using the saw.
• Precise cuts - With locking positions and fine adjuster, can also be used for cross cuts and rip cuts.

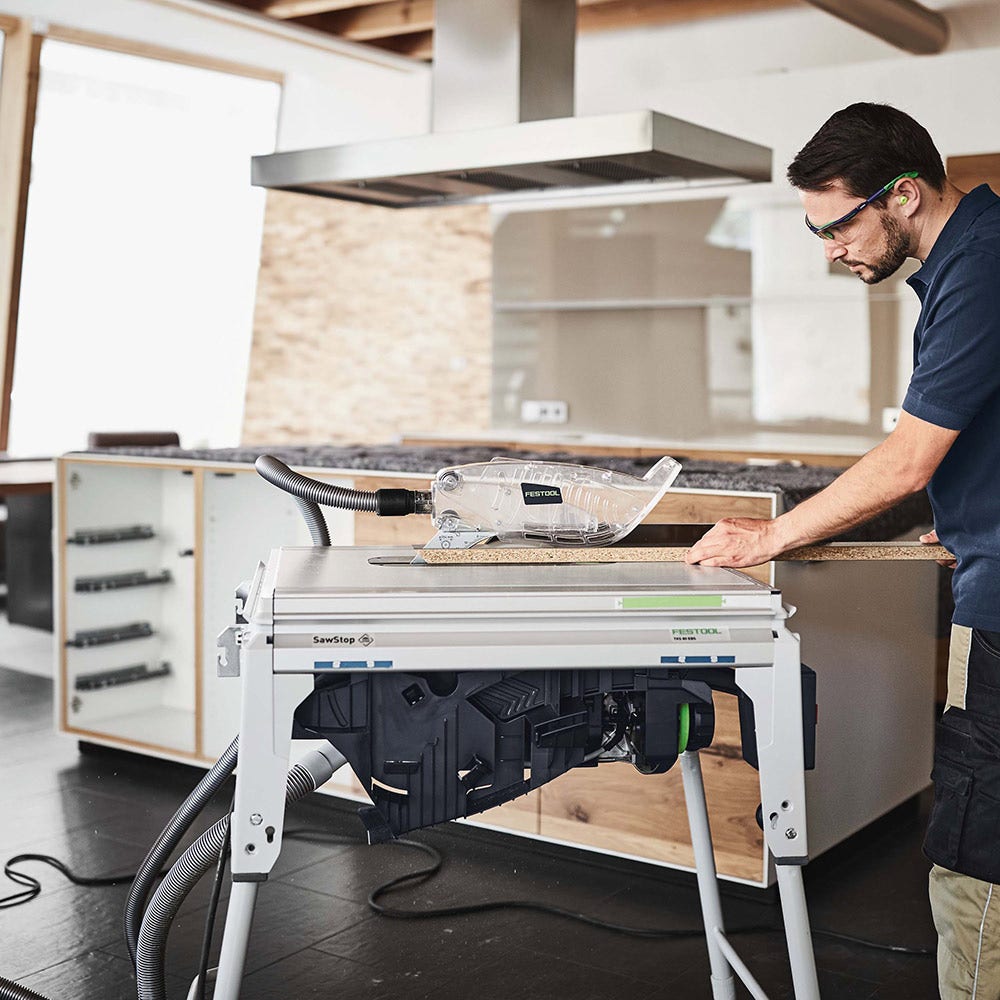

• Healthier working with a system - Dust extraction attachment with CLEANTEC extraction sleeve ensures dust-free work and a free view of the workpiece.

Applications

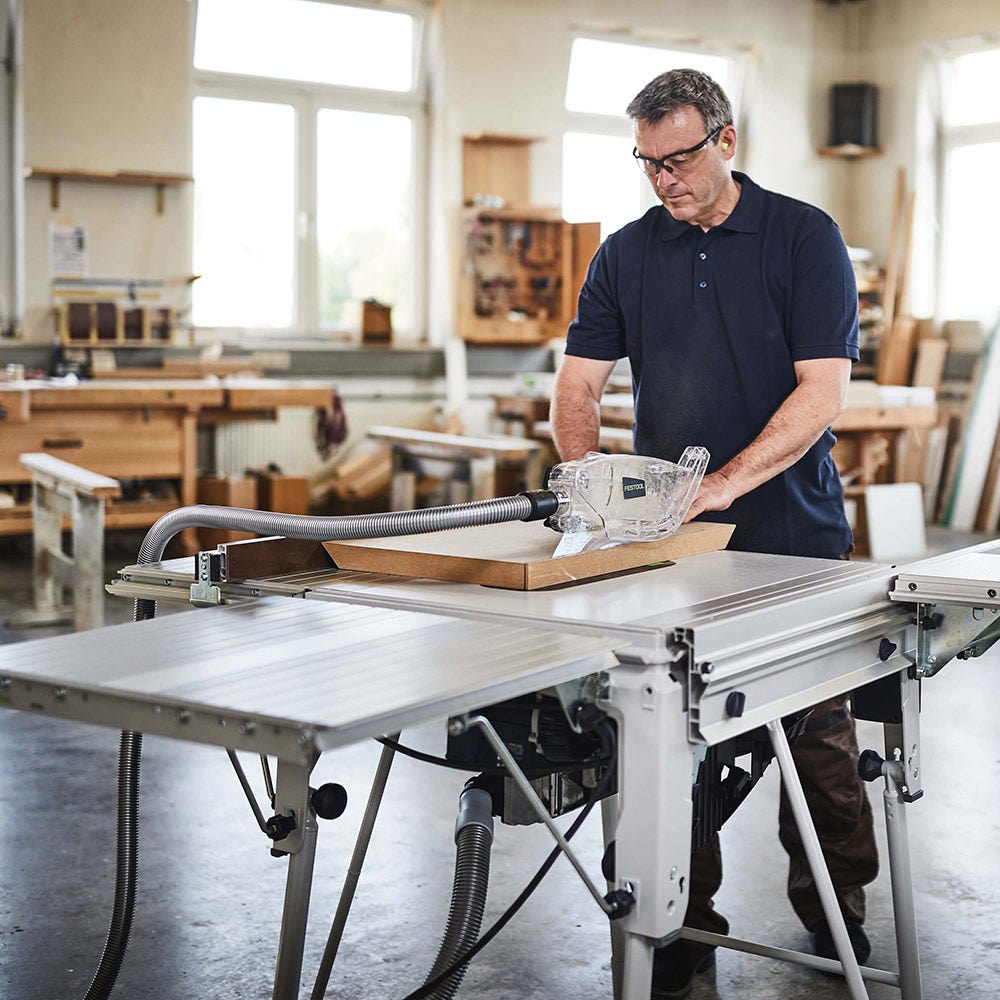

• Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm
• Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
• Tilting saw blade for angled cuts between -2° and 47°

Specifications

• Power Consumption: 2200W
• No Load Speed: 1700 - 3500 min⁻¹
• Saw Blade Diameter: 254 mm
• Cutting Height 45°: 56 mm
• Cutting Height 90°: 80 mm
• Inclination Angle: -2 / 47 °
• Table Dimensions: 690 x 580 mm
• Table Height - Legs Folded Away: 385 mm
• Table Height - Legs Unfolded: 900.00 mm
• Dust Extraction Connection Diameter: 27/36 mm

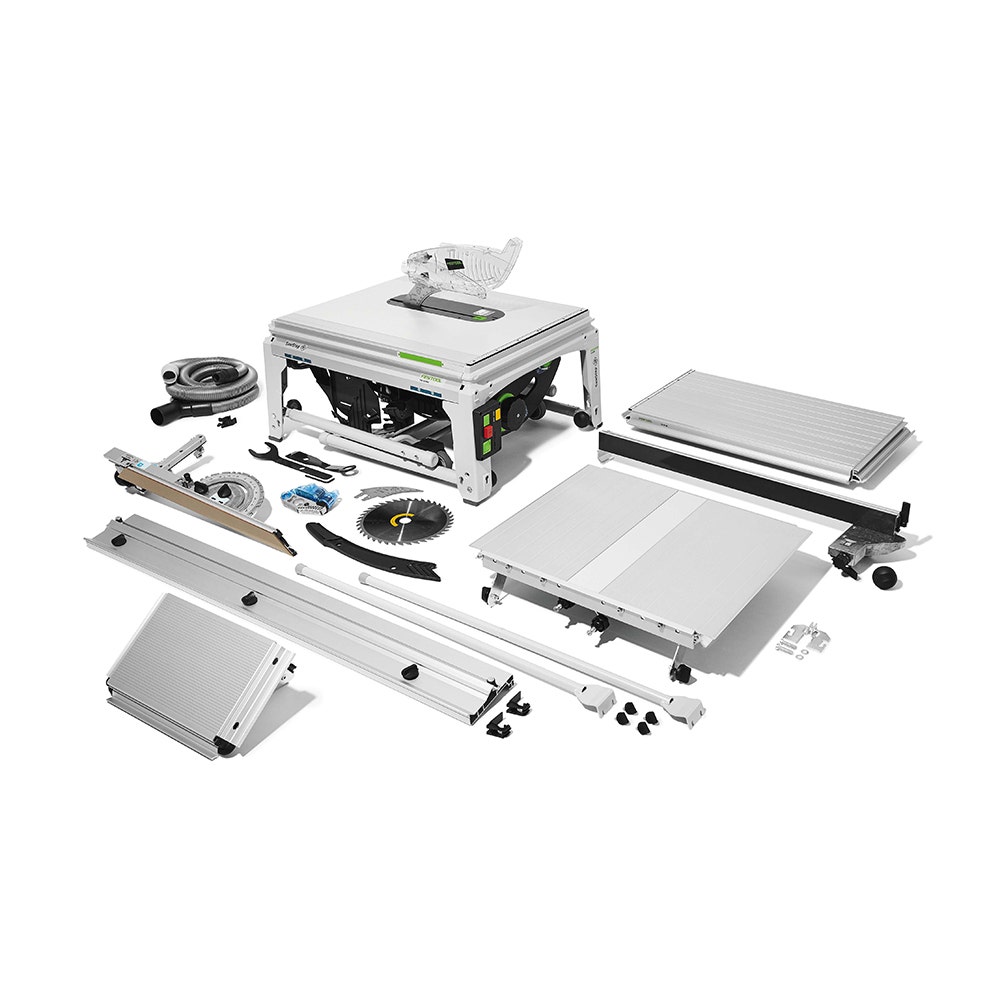

Includes

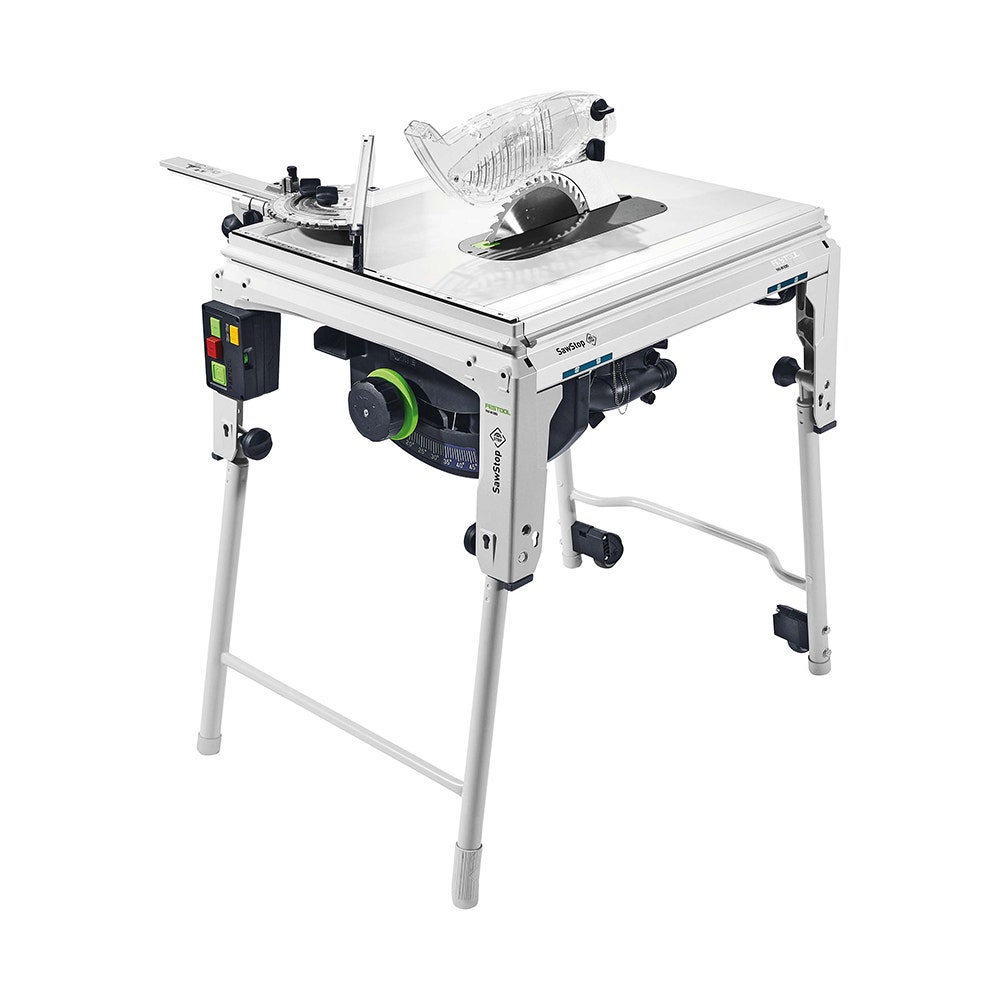

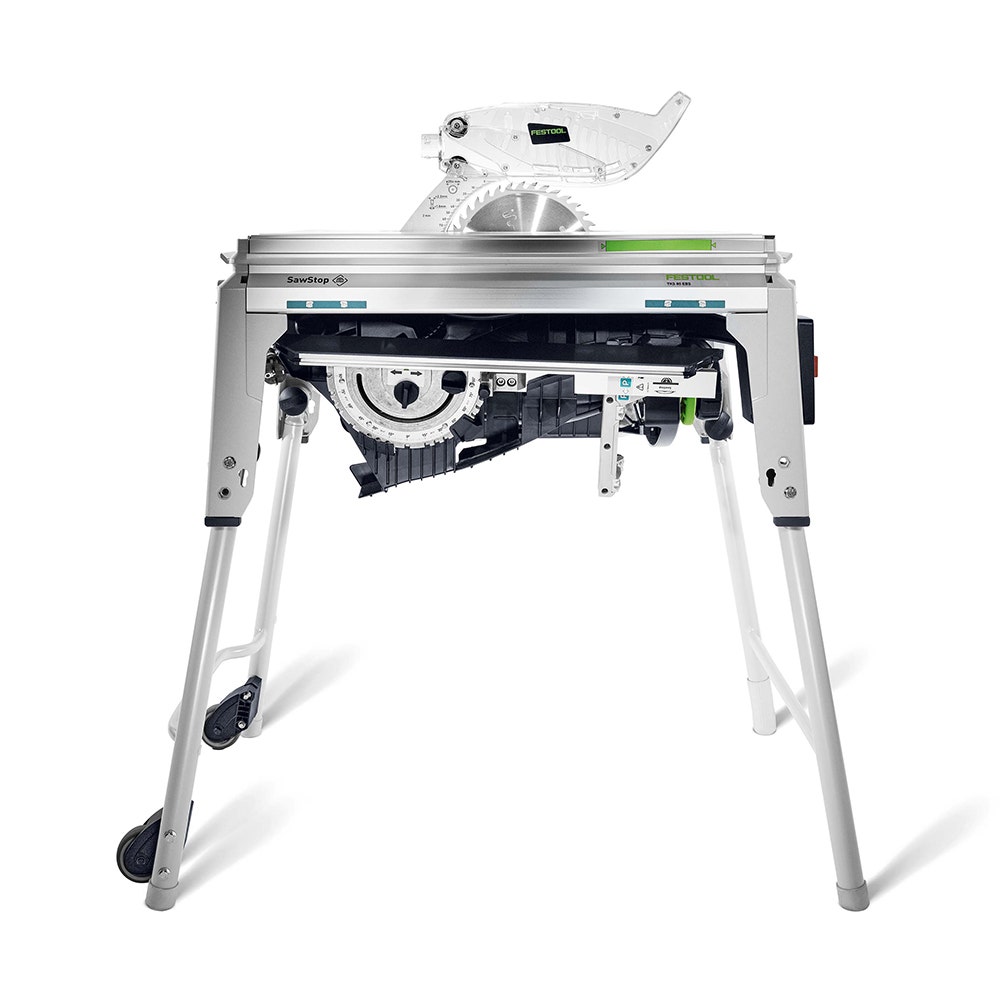

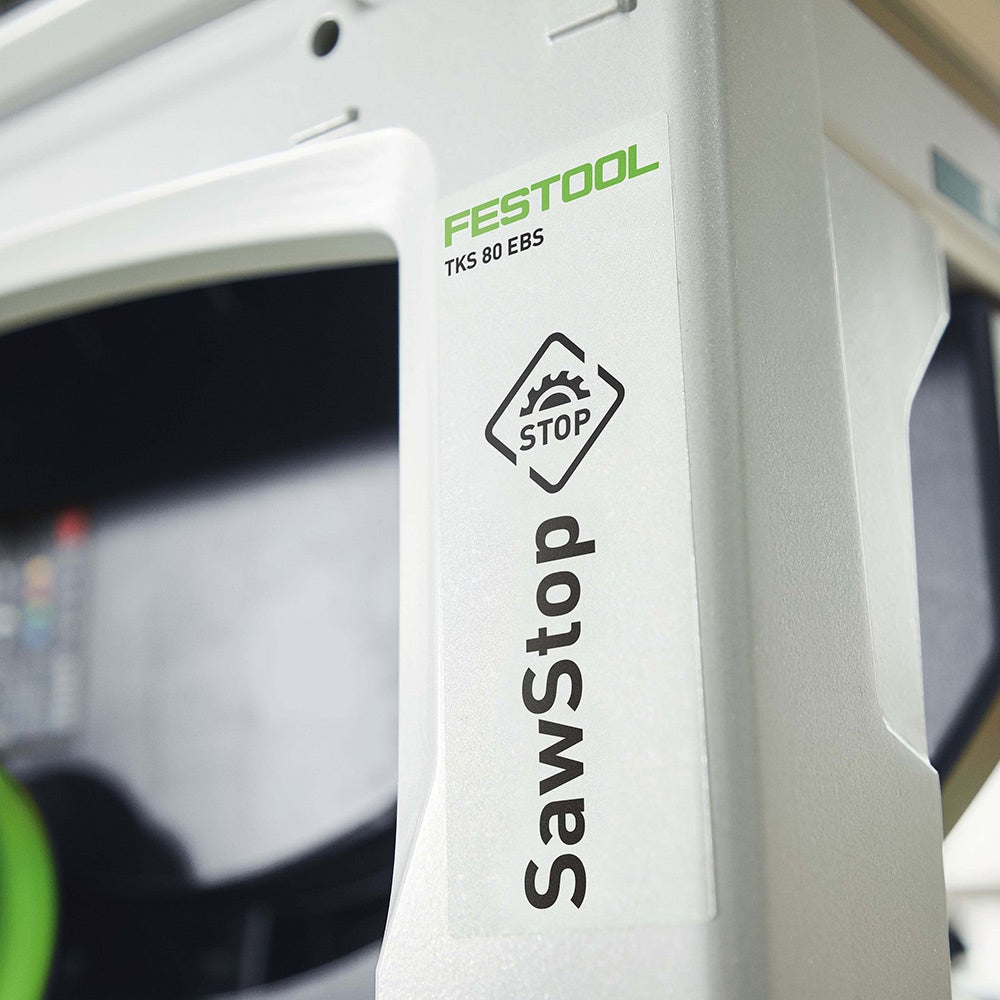

• TKS 80 SawStop 80mm Table Saw
• Carbide universal saw blade W40
• 3 x splinterguard
• Mitre guide
• Dust extraction hose set with Y piece

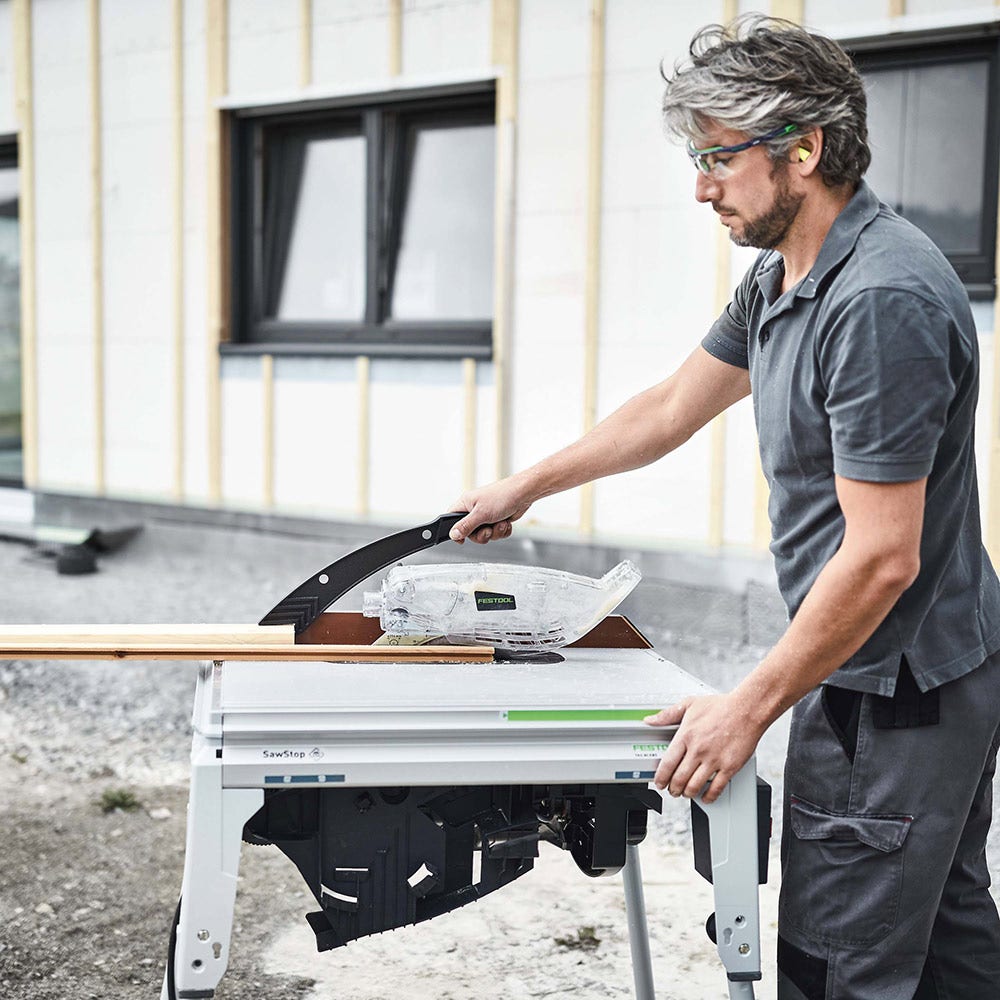

• Push stick
• Cartridge
• Operating tool
• Extension table VB TKS 80
• Guide extension VL TKS 80
• Rip fence LA TKS 80
• Sliding table ST TKS 80
