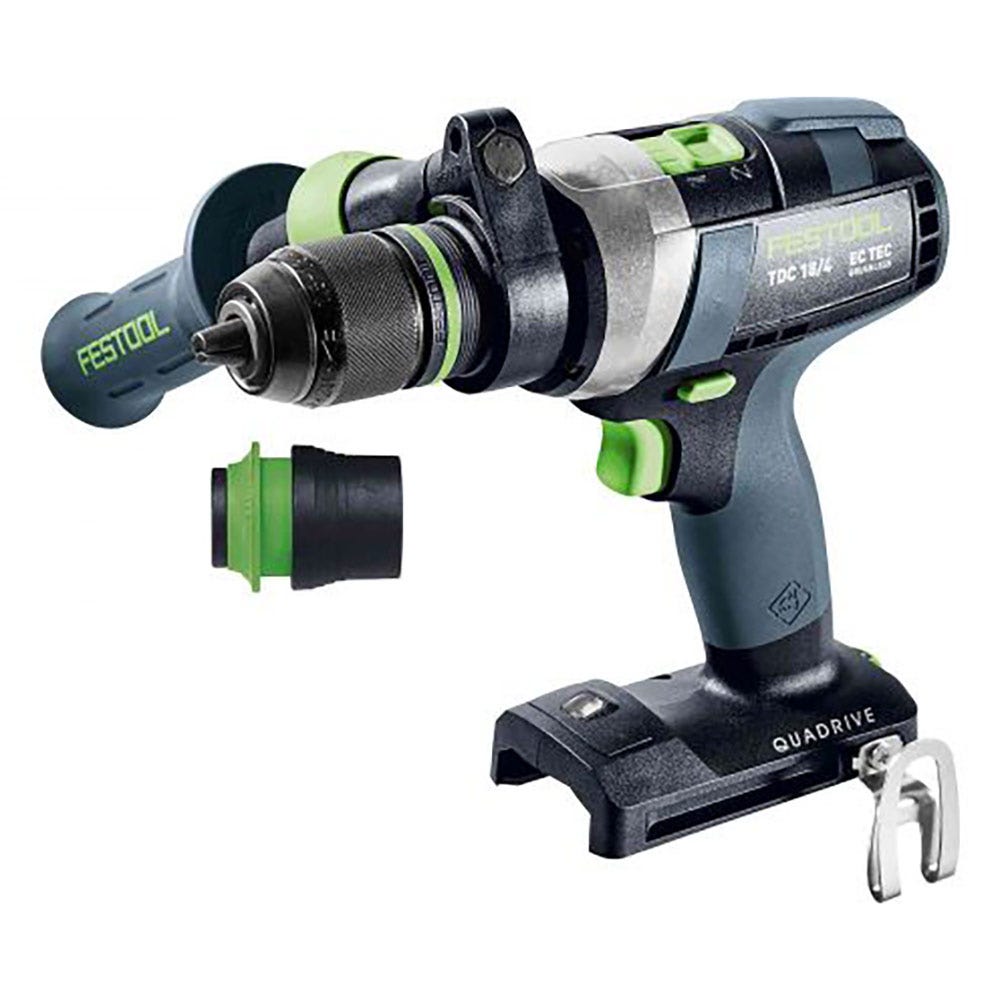

Powerful. Versatile. With four gears for every application and the best switching concept you have ever operated. Whether you are working on wood or metal, the TDC QUADRIVE is extremely durable and thanks to its brushless EC-TEC motor, has extreme resilience and endurance. Up to 75Nm of power drives screws and drills large diameters easily, while electronic kickback stop minimises wrist injury if the tool suddenly jams.

The large number of attachments, combined with perfectly matched accessories, make the QUADRIVE an unrivalled drill for a wide range of possible uses.

• Main applications
  • Production of wooden substructures, frame structures
  • Installation of doors and windows
  • Drilling and screwdriving in wood, metal and plastic
  • Drive screws into wood up to 10x300 mm
  • Drilling in wood up to 70 mm with Forstner drill bits

Specifications

• Drilling Diameter Steel (mm): 13 mm
• No Load Speed 1st Gear (rpm): 0 - 500 min-¹
• No Load Speed 2nd Gear (rpm): 0 - 800 min-¹
• Drilling Diameter Wood (mm): 70 mm
• Battery Voltage (V): 18 V
• Battery Capacity (Ah): 5.2 Ah
• Power Source: Cordless
• Motor Type: Brushless
• Battery Type ie. Lithium-ion: Lithium Ion
• Gears: 4
• Torque Adjustment 1st Gear (Nm): 2 - 20 Nm
• Torque Adjustment 2nd Gear (Nm): 2 - 20 Nm
• Maximum Torque Wood (Nm): 50 Nm
• Maximum Torque Steel (Nm): 75 Nm
• Chuck Range (mm): 1.5 - 13 mm
• No Load Speed 4th Gear (rpm): 0 - 3600 min-¹
• No Load Speed 3rd Gear (rpm): 0 - 2350 min-¹
• Chuck Type: FastFix

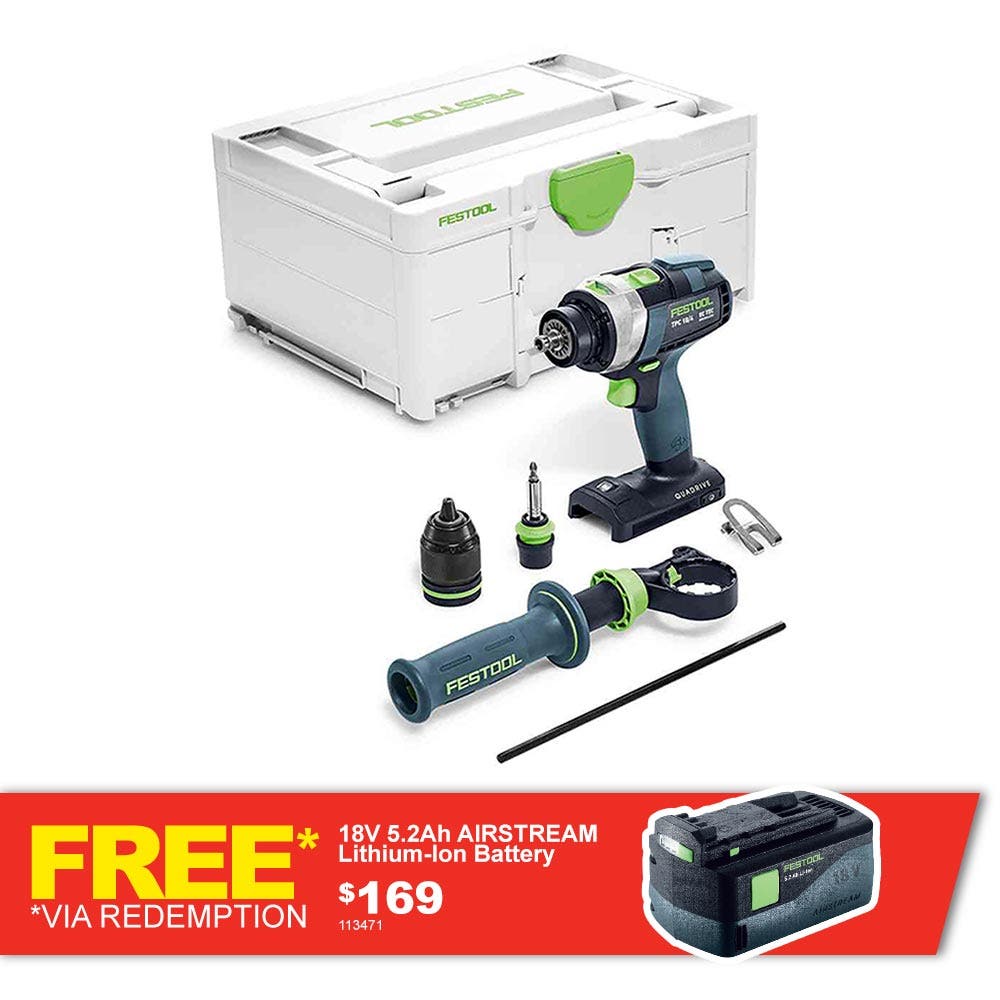

Includes

• TDC 18V Cordless 4 Speed Drill
• Soft Grip Handle
• CENTROTEC BH 60 CE Magnetic bit holder
• CENTROTEC Tool Chuck
• FastFix Keyless Chuck KC 13-1/2-MMFP
• Belt Clip
• PZ 2 Bit
• Systainer³ SYS 2 M 187
• Tool Manual

*Battery and charger not included.
