Description

Description

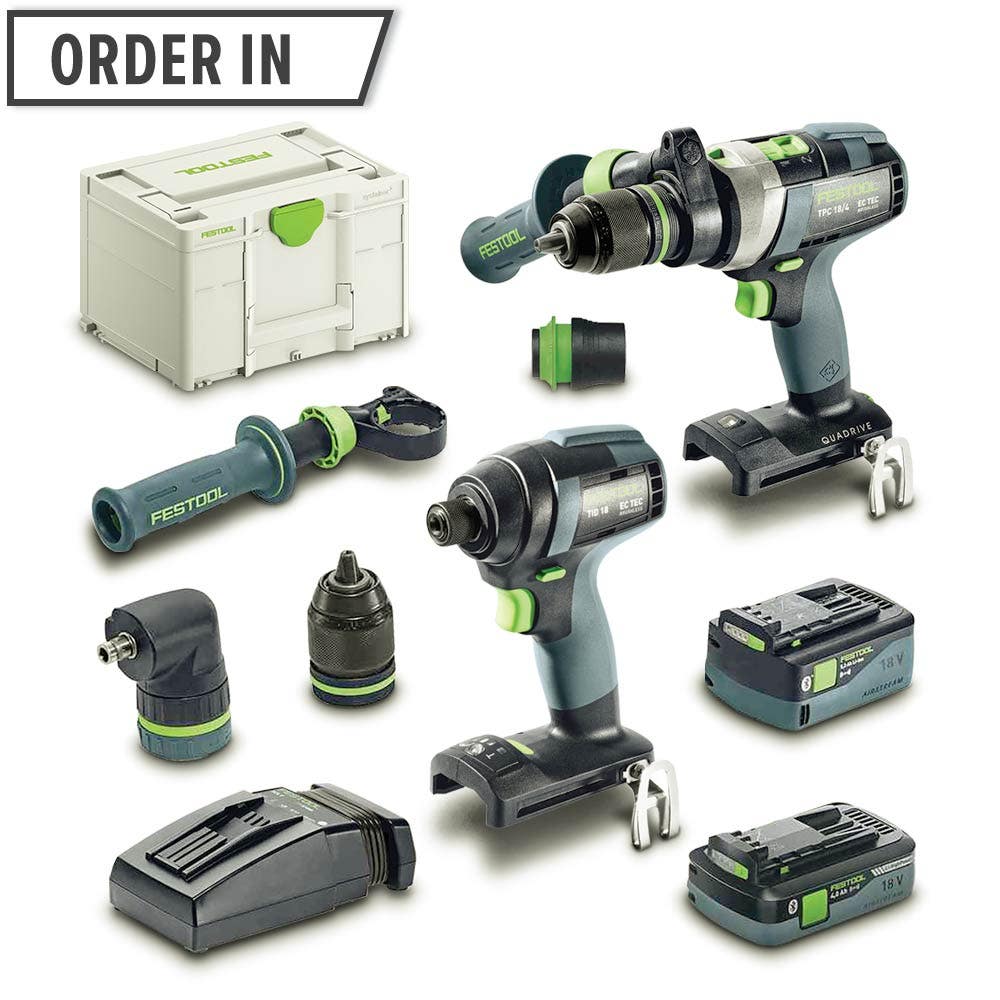

Includes

• 1 x FESTOOL 18V Brushless TID Impact Driver Basic Skin 576481
• 1 x FESTOOL 18V 4 Speed Hammer Drill Skin 575604
• 1 x FESTOOL 18V 5.2Ah AIRSTREAM Lithium-Ion Bluetooth Battery 202479
• 1 x FESTOOL 18V 4.0 Ah AIRSTREAM Lithium-Ion Bluetooth High Power Battery Pack 205034
• 1 x FESTOOL 10.8-18V Battery Charger 201137
• 1 x FESTOOL 237mm x 396mm Systainer3 SYS 3 Medium Storage Box 204843
• Accessories

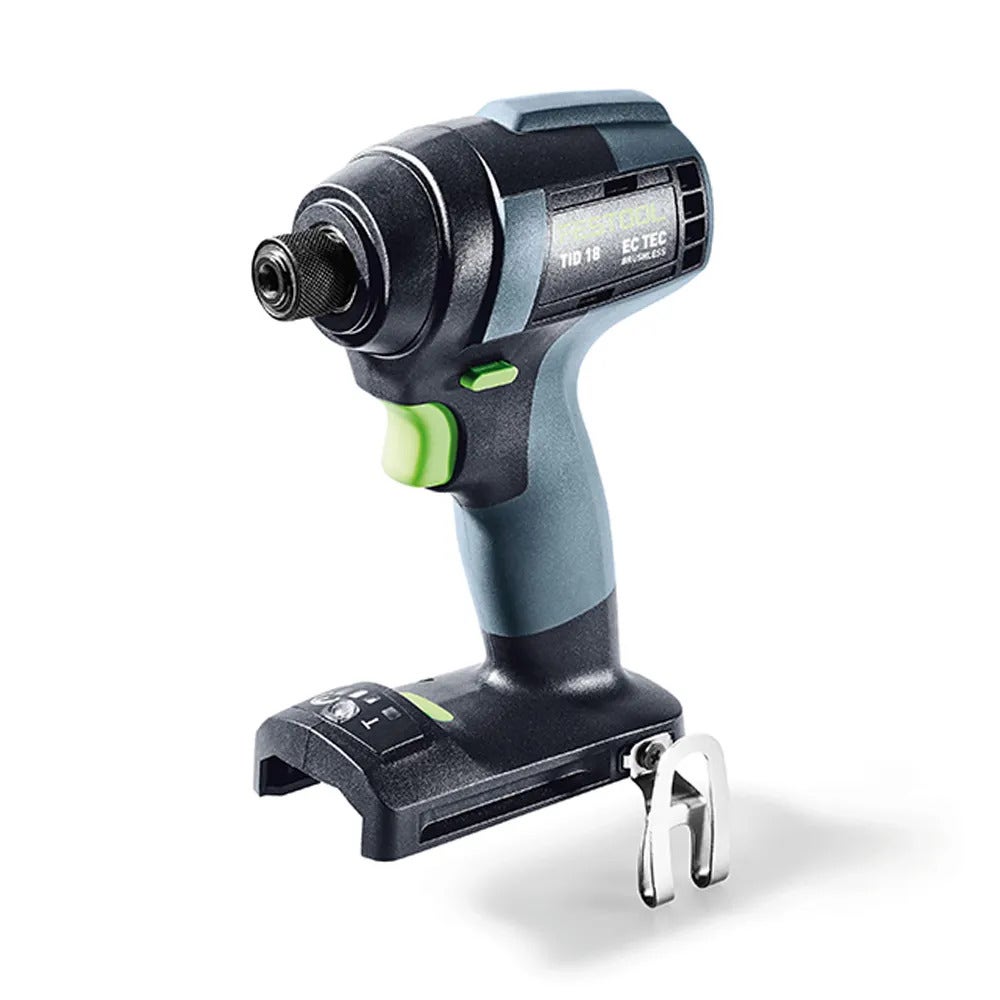

FESTOOL 18V Brushless TID Impact Driver Basic Skin 576481

This compact powerhouse offers an impressive service life thanks to its extremely robust hammer mechanism. The perfect combination of the new generation brushless EC-TEC motor and the battery pack ensure maximum performance and endurance. In addition to this, the TID 18 with 1/4" tool holder turns the screw without straining your wrist – thanks to the tangential hammer mechanism with no strength sapping back torque. The machine weight of just 960 grams also allows you to work for longer without becoming tired.

• Robust: Long-lasting quality components, also fully covered thanks to the comprehensive support provided by Festool Service
• Maximum power: Thanks to the extremely powerful, brushless, and therefore long-lasting, latest generation EC-TEC motor with three speed levels, 180 Nm torque and additional T-mode specifically for self-tapping screws
• Safe: kickback-free tangential hammer mechanism protects your wrist
• Ergonomic: compact design enables you to work accurately and for longer without becoming tired, even in hard to reach areas
• Flexible battery system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. For even less weight, opt for the 3.1 Ah Compact battery pack for light screw joints
• Convenient: tool-free 1/4" holder, integrated bit storage, optimum LED illumination of the work area, belt clip for attachment on both sides
• Mobile: packed in a Systainer³, the TID 18 can be integrated perfectly into the bott vehicle fixture for easy transport from the body shop to the building site

Applications

• Screwdriving work that protects your wrist, with no reverse torque
• Furniture assembly and kitchen fitting
• Installation of fittings, rear walls, strips
• Installation of doors and windows
• Screwdriving in wood, metal and plastic
• Fences, pergolas, carports, canopies
• Production of wooden substructures

Specifications

• Gears: 3 + T-Modus
• Maximum Impact Rate: 4 500 min-¹
• Maximum Torque Wood: 180 Nm
• Maximum Screw Diameter: 8 x 220 mm
• No Load Speed (RPM):
  • 1st Gear: 0 - 1200 min⁻¹
  • 2nd Gear: 0 - 2000 min⁻¹
  • 3rd Gear: 0 - 3200 min⁻¹

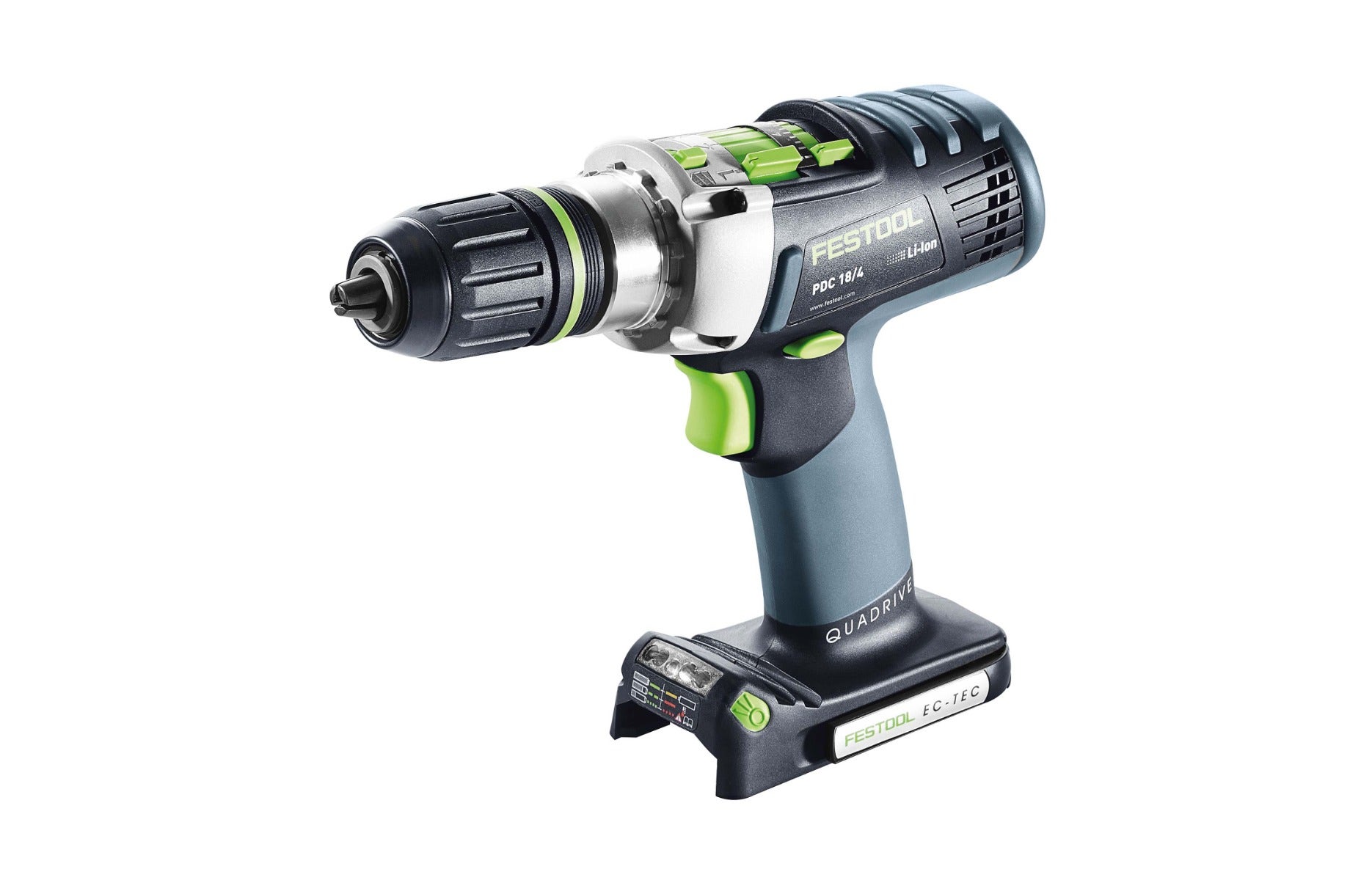

FESTOOL 18V 4 Speed Hammer Drill Skin 575604

For drilling and screwdriving with large diameters, the QUADRIVE PDC 18 cordless percussion drill delivers high power and speeds with its robust four-gear metal gearbox. Powerful screwdriving with a torque of 60 Nm in first gear and precise drilling with 3,800 rpm in fourth gear are no longer a problem. Whether working with wood or metal or even in brickwork with the axial impact activated – the PDC 18 is extremely tough and its maintenance-free brushless EC-TEC motor ensures excellent durability.

Applications

• Production of wooden substructures, frame structures
• Installation of doors and windows
• Drilling and screwdriving in wood, metal and plastic
• Drive screws into wood up to 10x300 mm
• Drilling in wood up to 50 mm with Forstner drill bits

Specifications

• No Load Speed (RPM):
  • 1st Gear: 0 - 400 min⁻¹
  • 2nd Gear: 0 - 850 min⁻¹
  • 3rd Gear: 0 - 1850 min⁻¹
  • 4th Gear: 0 - 3800 min⁻¹
• Torque Adjustment:
  • 1st Gear: 1.2 - 11.5 Nm
  • 2nd Gear: 0.8 - 7.2 Nm
• Maximum Torque Wood: 40 Nm
• Maximum Torque Steel: 60 Nm
• Drilling Diameter Wood: 50mm
• Drilling Diameter Brick: 10mm
• Drilling Diameter Steel: 13mm
• Chuck Range: 1.5 - 13mm

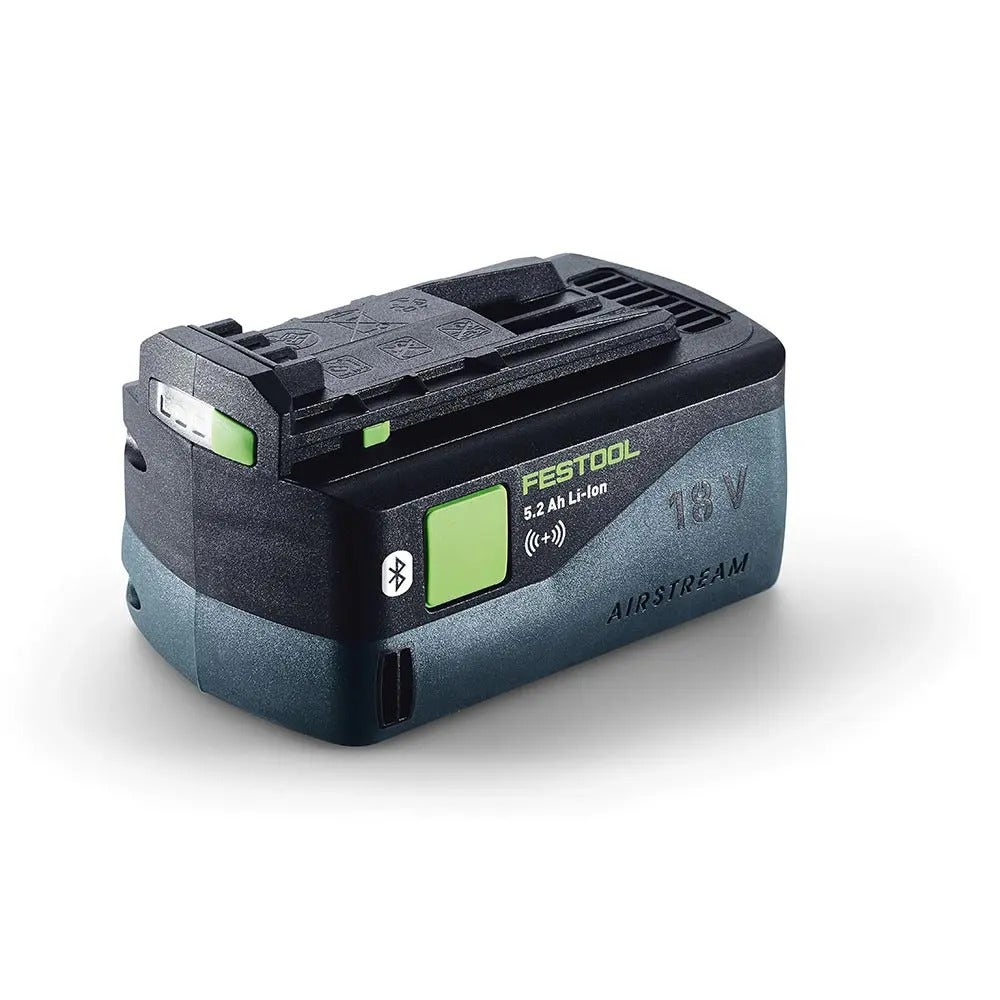

FESTOOL 18V 5.2Ah AIRSTREAM Lithium-Ion Bluetooth Battery 202479

The new Bluetooth Battery Packs communicate with the Bluetooth module (sold separately) on the CT mobile dust extractors and ensures that even a cordless tool starts the mobile dust extractor automatically when switched on. This enables you to benefit from Festool's entire dust-free system when working with Festool cordless products too. Long lasting, and measurably superior to other cordless tools. Now you can achieve perfect results quickly and easily with the quality you expect, even when you’re not near an electrical outlet. Festool's Airstream Technology rapidly charges compatible batteries. Airstream technology significantly increases the battery capacity and provides faster charging. Cool air is directed through targeted air ducts in the battery and out through the charger to quickly lower the internal temperature. A minute display tells you exactly when the battery pack can be used again. This information is displayed both by the charge indicator on the charger and also by the integrated LED display on the battery pack itself.

FESTOOL 18V 4.0 Ah AIRSTREAM Lithium-Ion Bluetooth High Power Battery Pack 205034

The lithium high-power compact battery packs: Effortless work thanks to the weight of 600 g. This makes it 20% lighter and 50% more compact than a 5.2 Ah battery pack – saving on weight, but not on performance. Thanks to the lithium high-power cell technology, it is powerful enough for every application. And, of course, with Festool Service, the product is completely covered.

• Effortless work: At just 600 g, it is 20% lighter and 50% more compact than a 5.2 Ah battery pack
• Full power: Thanks to the Li-HighPower cell technology, it is powerful enough for every application
• Extremely durable: The high-current-resistant cells ensure durability
• For stress-free work: The battery packs are, of course, completely covered with Festool Service
• Dust extraction starts automatically: The Bluetooth® version automatically starts the connected mobile dust extractor when the tool is switched on
• Bluetooth® lithium-ion (Li-ion) battery pack with AIRSTREAM function for all Festool 18 V cordless tools (except CXS, TXS, ETSC 125, RTSC 400, DTSC 400)
• Bluetooth® enables the CLEANTEC mobile dust extractor to be started automatically when the cordless tool is switched on (Bluetooth®-compatible mobile dust extractor is required)

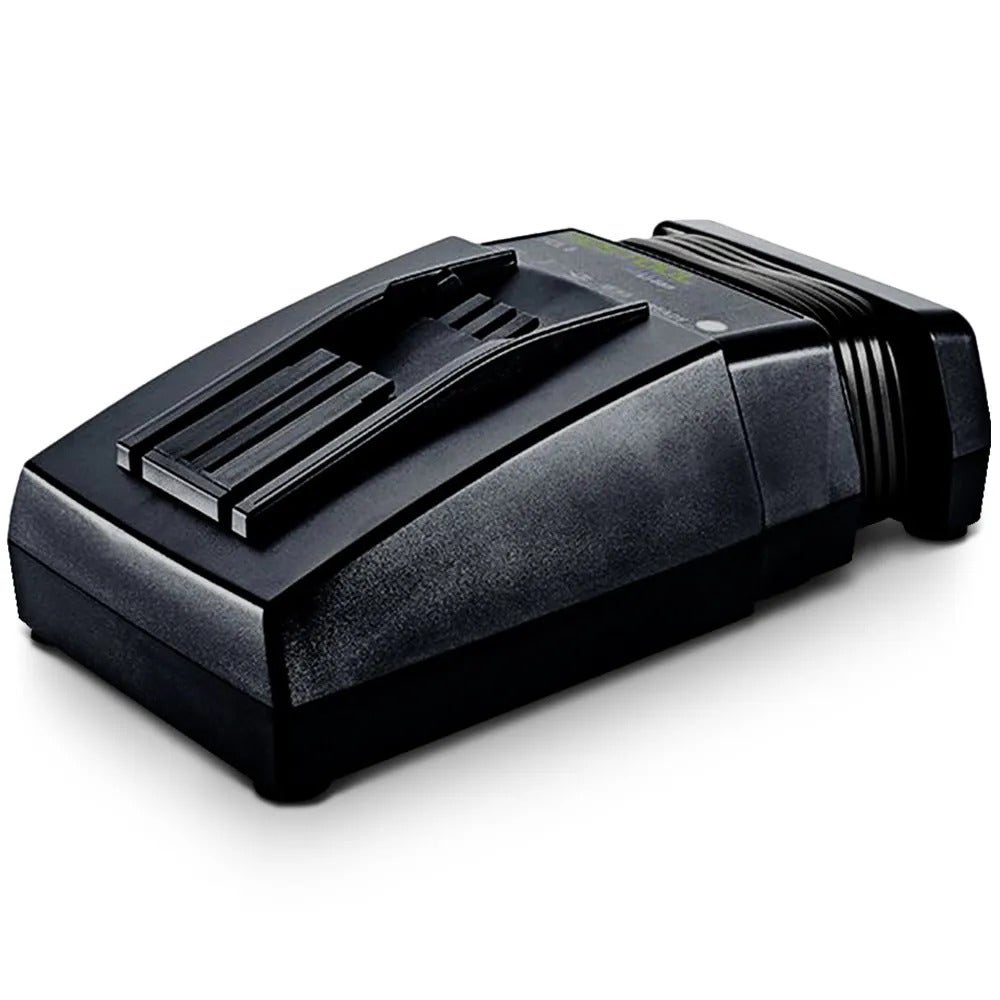

FESTOOL 10.8-18V Battery Charger 201137

Battery charger with rapid charge function for use with all slide on Li battery packs (except CXS/TXS). The TCL 6 Rapid charger is suitable for 10.8V-18V battery packs with a charging current of 6A and weighs only 0.8kg. Safe and efficient, the TCL 6 features intelligent monitoring electronics that protect the charging battery from being overcharged or charged in hazardous conditions. Fast charging in 40-70 minutes depending on tool temperature.

Specifications

• Charging Current:6 A
• Input Voltage: 220V-240V

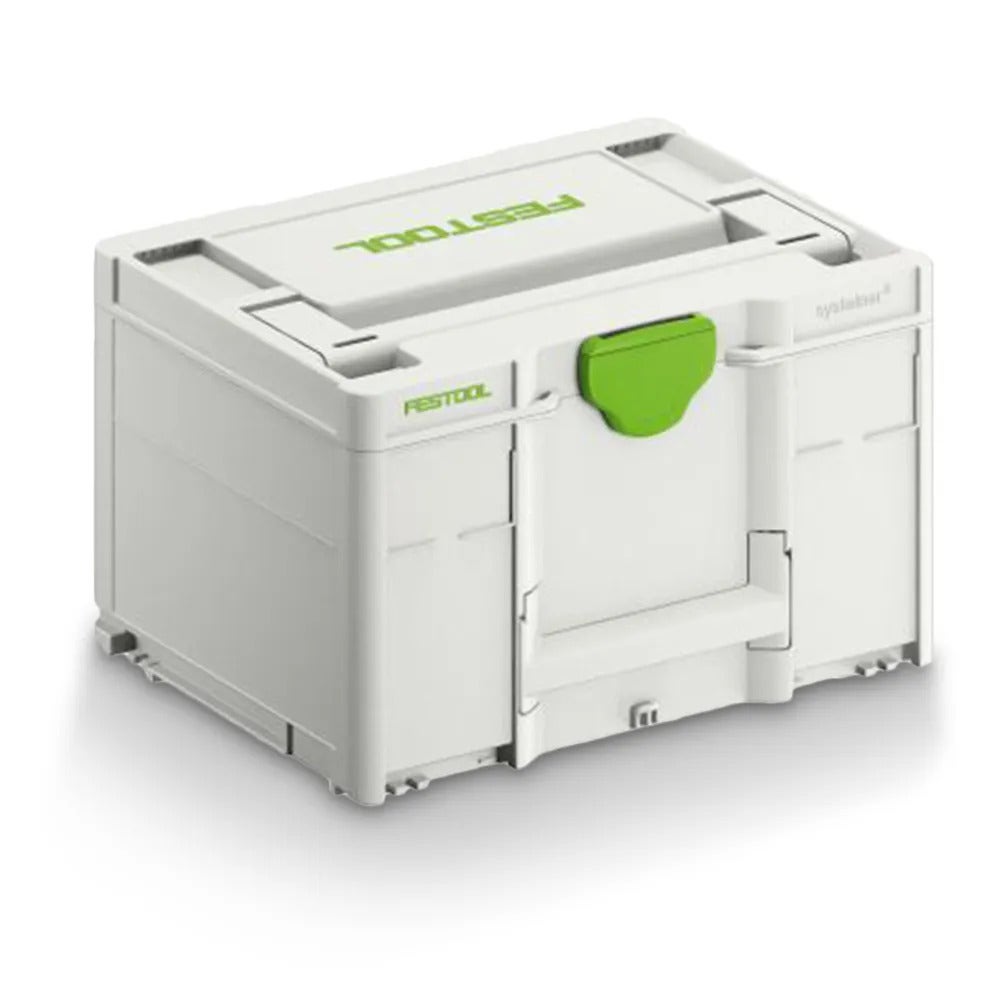

FESTOOL 237mm x 396mm Systainer3 SYS 3 Medium Storage Box 204843

The new Systainer³ generation enables you to be more mobile than ever before. Festool, TANOS, and bott have collaboratively developed a mobility system that brings the workshop and the construction site closer together. It is perfectly integrated into Bott vario3 vehicle equipment, allowing you to safely deploy the familiar arrangement and simple handling that you are used to from the Systainer system in your vehicle as well.

• Can be connected to one another and to different generations
• Compatible with transport systems and mobile dust extractors
• Enable organization, an overview, and professional appearance

Specifications

• Load Capacity (kg): 20.00 kg
• Volume (litres): 21.40 l
• Dimensions with Floor Stand L x W x H (mm): 396 x 296 x 237 mm
• Internal Dimensions L x W x H (mm): 389 x 275 x 196 mm
• Weight (kg): 1.90 kg
