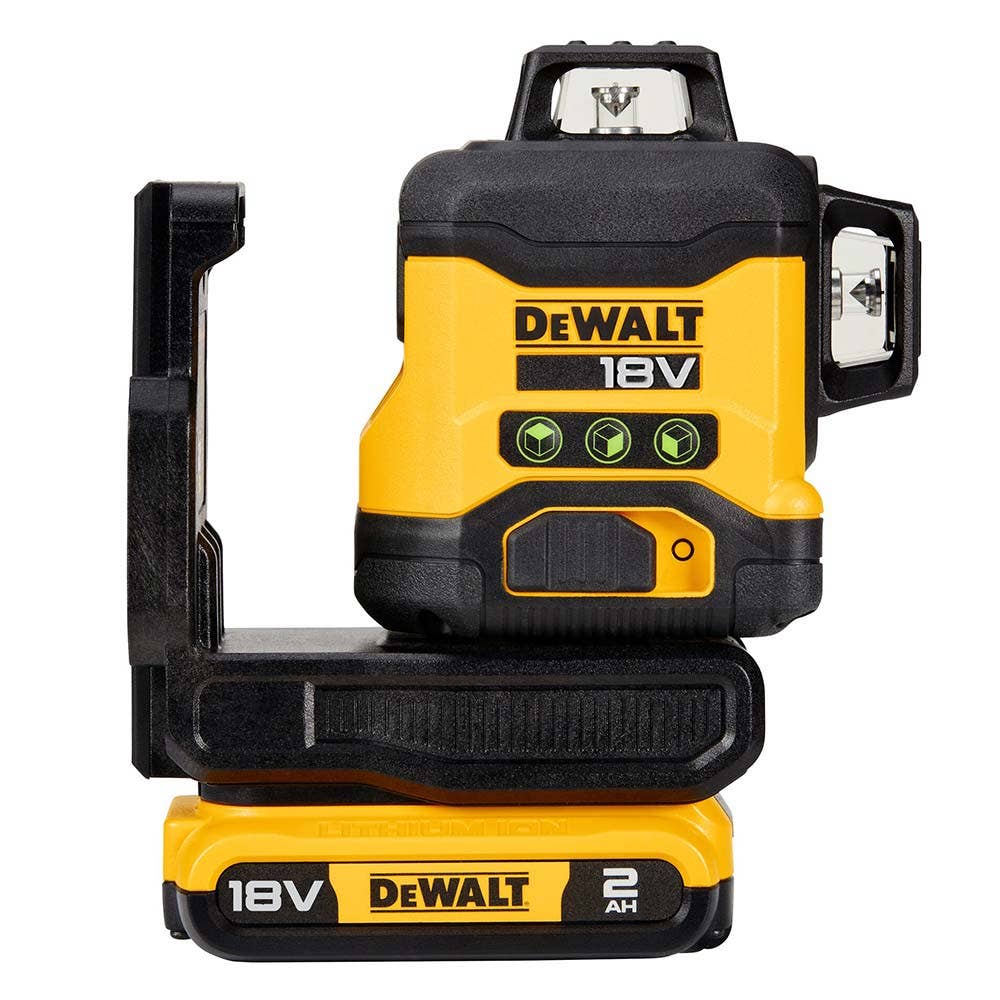

• GREEN BEAM DIODE: Class leading green beam diode to ensure better beam visibility on the jobsite even when brighter conditions
• ACCURACY OF ±3MM @ 10M: Professional accuracy provided to the end user ensures being precise on the jobsite
• 3X360° SELF LEVELING LINES: The self levelling multiline laser projects 3 bright 360° horizontal and vertical lines (independently or as a cross), up to 40m (100m w/ detector)
• OFF LAST MODE: For added convenience the 3 lines appear in previous state prior to unit being turned off
• PIVOTABLE BRACKET WITH MAGNETS: For safe sticking to metal studs
• PENDULUM LOCK: To help prevent damage to internal components
• 18V XR BATTERY COMPATIBILITY: Taking advantage of the well known and distributed 18V battery system of DEWALT – making it compatible as well for the line laser system

Specifications:

• Working Range: 40m (With Detector: 100m)
• Accuracy Line: ±3mm @ 10m
• Compensation Range: ±4°
• Leveling Time (seconds): ≤5s
• IP Rating: IP54
• Drop test: 1m
• Power: 18V XR Compatible
• Run Time: Up to 11 Hours
• Mounting Thread: 1/4“ & 5/8” (integrated in bracket)

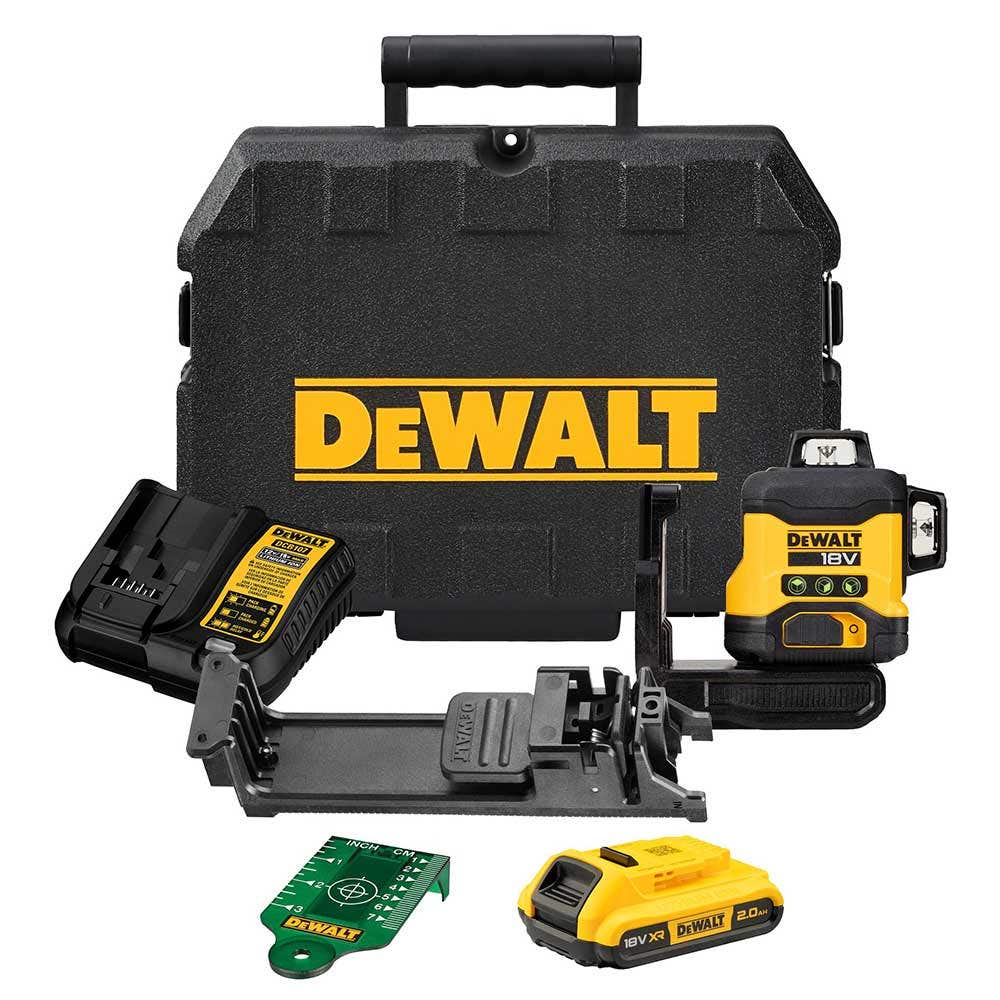

Includes:

• Laser
• 18V 2.0ah battery
• Charger
• Green Target Card
• Wall Mounting Bracket
• Blowmould Case
