Description

Description

• Accurate measurements and recordings of surface temperature and ambient conditions

• Integrated camera instantly shows and documents measured values in photos

• Transfers data via Bluetooth® with the Measuring Master App for easy storage and sharing of high-quality documentation

• Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries

Specifications

• Measurement range: -40 °C … +1000 °C
• Measuring accuracy of IR: ±1.0 °C
• Optics (Ratio of meas. distance : meas. spot): 50:1
• Measuring distance: 50
• Measuring spot: 1
• Resolution: 0.1°C
• Measuring accuracy of relative humidity: ± 2 %
• Laser diode: Laser class 2, 635 nm
• Frame buffer (number of images): >200
• Memory type: Internal memory
• File format of image: .jpg" />
• Data transfer: MicroUSB, Bluetooth™, Bluetooth™ Smart
• Shock protection: 1m
• Supported Android devices: Smartphone with Android 4.0 or higher, Tablet with Android 4.0 or higher
• Supported iOS devices: iPad (3rd Gen. or higher), iPad Air (1st Gen. or higher), iPad mini (1st Gen. or higher), iPhone 4S or higher
• Display type: TFT LCD
• Size of display: 2,8"
• Operating temperature, from: -10°C
• Operating temperature, up to: 50°C
• Operating temperature: -10 – 50°C
• Storage temperature, from: -20°C
• Storage temperature, up to: 70°C
• Storage temperature: -20 – 70°C
• Working range, from: 0.1m
• Working range, up to: 5m
• Working range: 0.1 – 5m
• LED Laser Colour: Red
• Laser Class: 2
• Laser Diode: 635 nm, < 1 mW

Includes

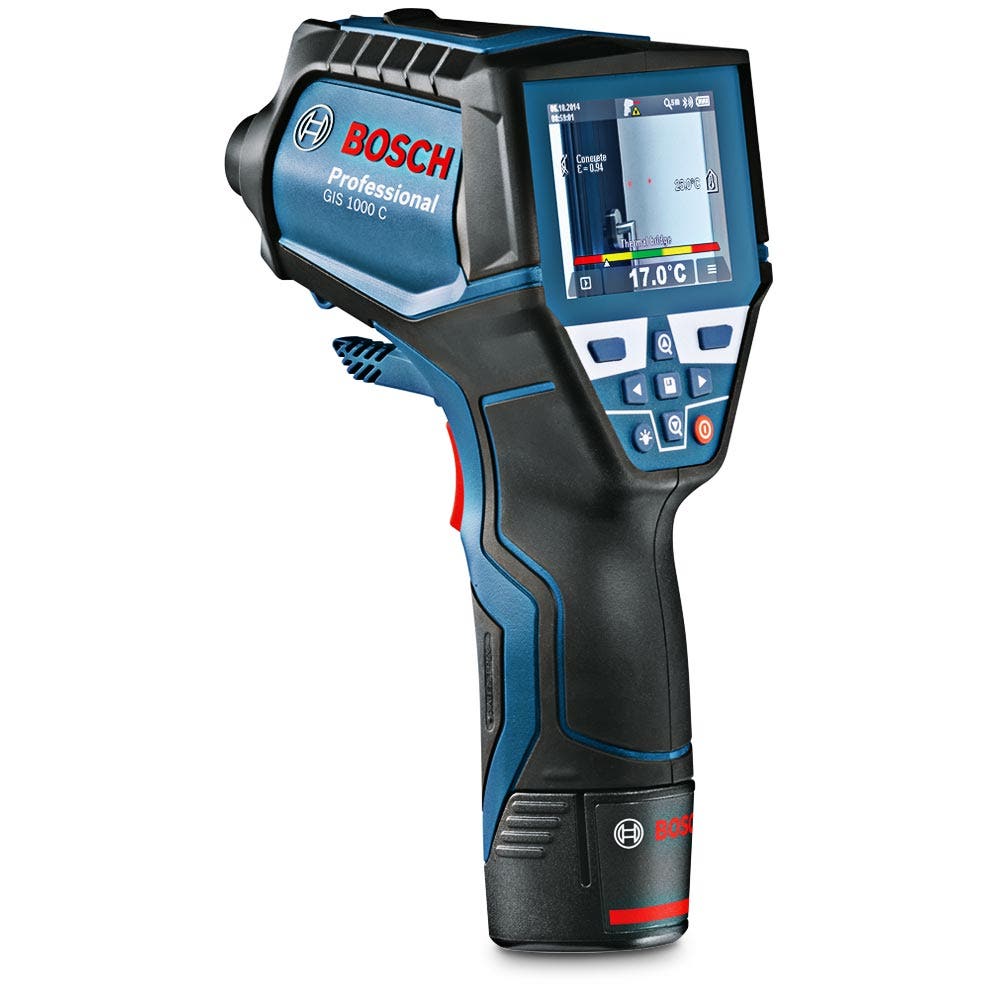

• 1 x GIS 1000 C
• 4 x 1.5V (AA) Alkaline
• 1 x 120 cm camera cord
• Batteries
• 1 x Carry bag
• 1 x User Manual

Specification

Specifications

Videos & Manuals

Manuals

• Bosch Infared Scanner GIS1000C - Product Manual
