The robust GTC 600 C can withstand falling from a height of 2 m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This thermal camera has a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.

Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch Thermal App and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.

Equipment & Application This tool is ideal for detecting insulation problems and unwanted hot or cold spots.

Specifications

• Battery voltage: 12.0 V
• Measurement range*: -20 °C to +600 °C
• Measuring accuracy of IR*: ± 2.0 °C* (*plus use-dependent deviation)
• Resolution: 0.1
• Thermal sensitivity (NETD): <=50 mK
• Size of IR sensor: 256x192 px
• Number of measuring points: 49,152
• Field of view (FOV): 45x35°
• Power supply and runtime: GBA 12 V 2.0 Ah 6 hours
• Frame buffer (number of images): 600
• File format of image: .jpg" />
• Data transfer: Wi-Fi, USB-C™
• Dust and splash protection*: IP54** (**except for the lithium-ion battery pack)
• Supported Android devices: Smartphone with Android 6.0 or higher, Tablet with Android 6.0 or higher
• Supported iOS devices: iPad with iOS 11 or higher, iPhone with iOS 11 or higher
• Size of display: 3,5"
• Operating temperature: -10 – 45 °C
• Storage temperature: -20 – 50 °C
• Focus distance, minimum: 0.3
• Thermal image refresh rate: 9
• Frame buffer (number of images each with audio): 350
• File format of audio: .wav

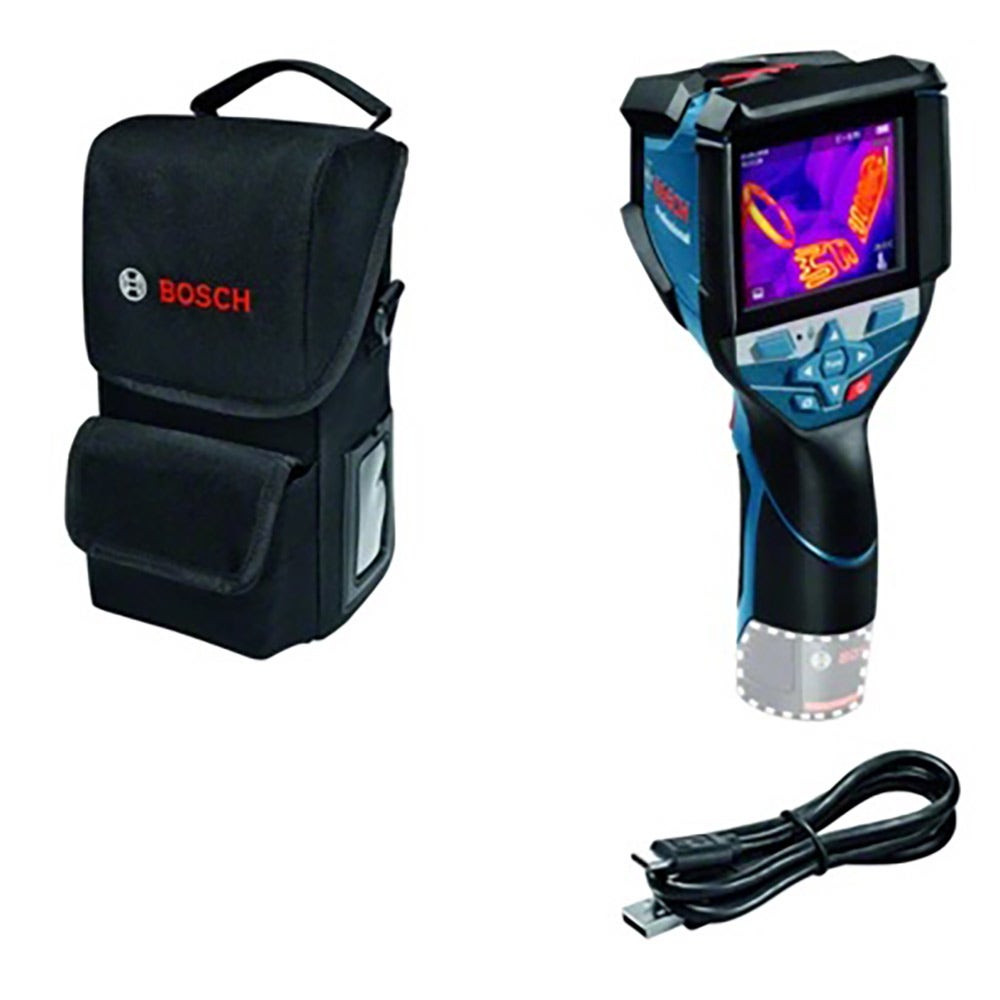

Includes

• Micro USB cable
• Carrying Bag
