Description

Description

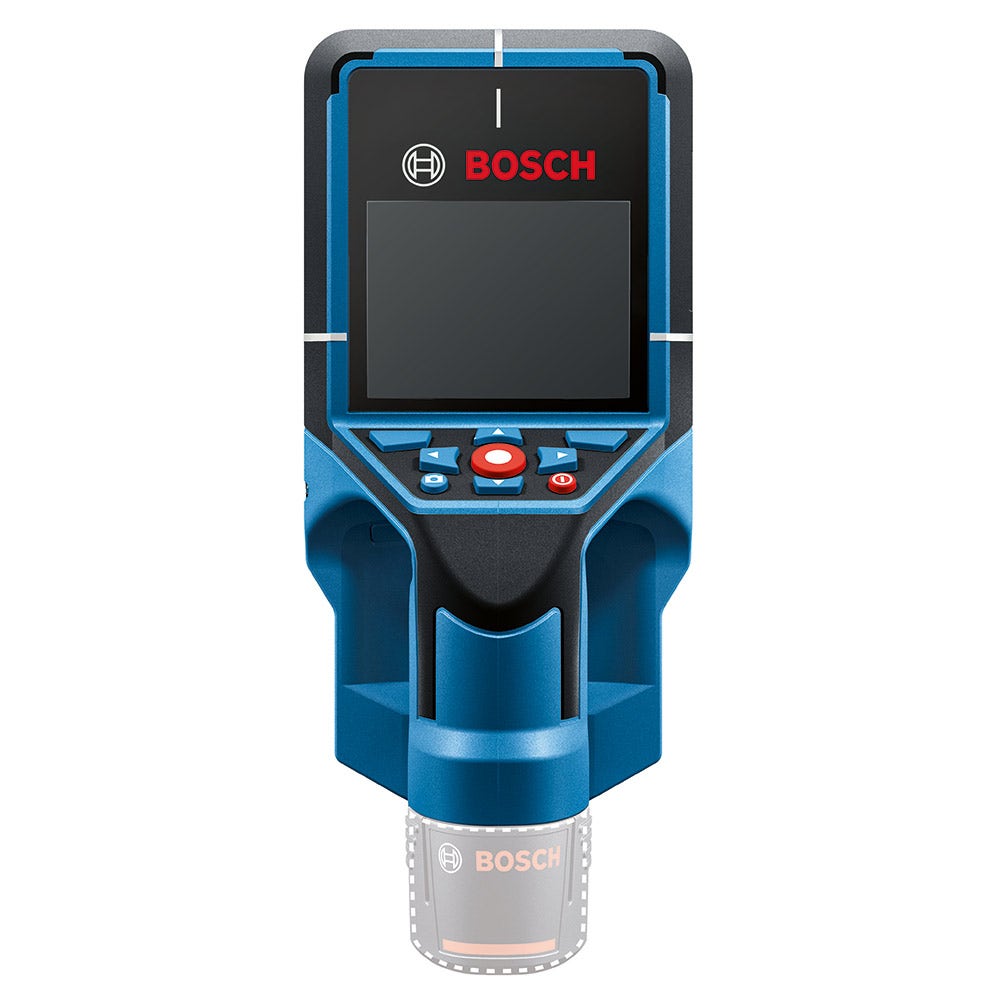

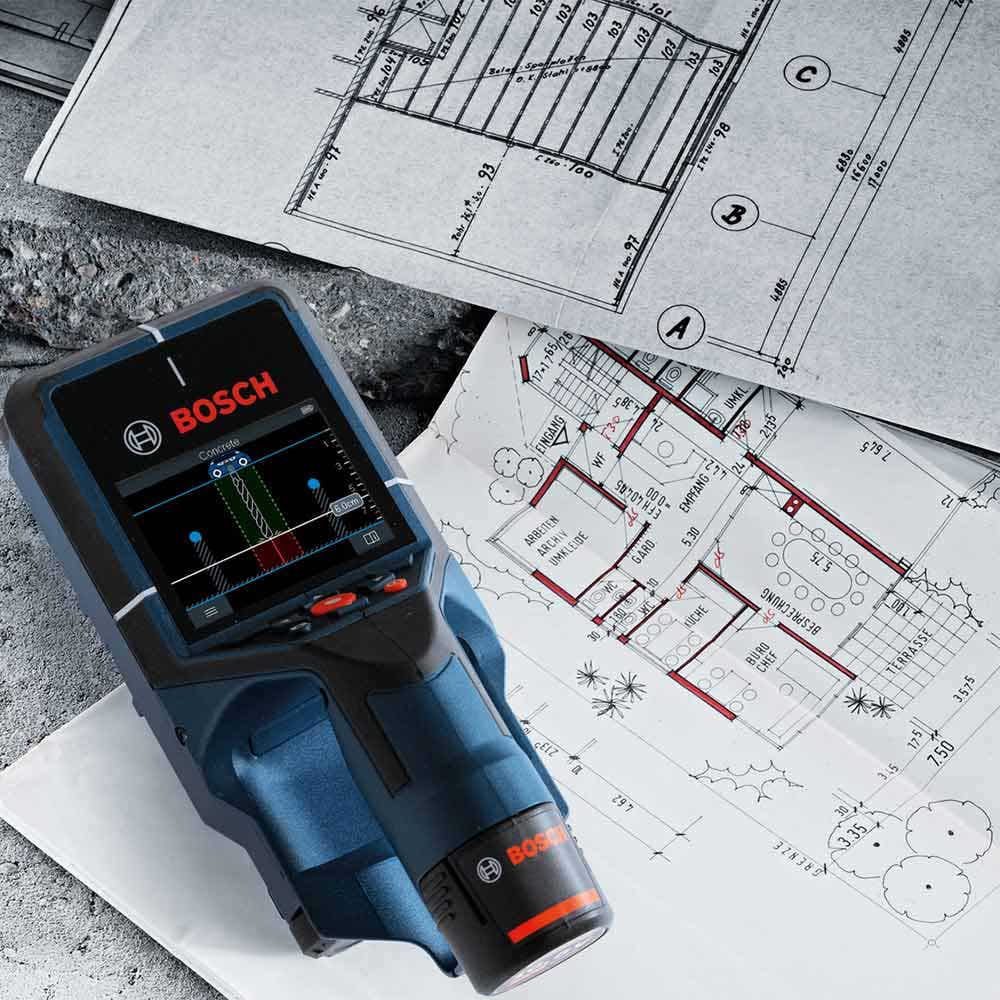

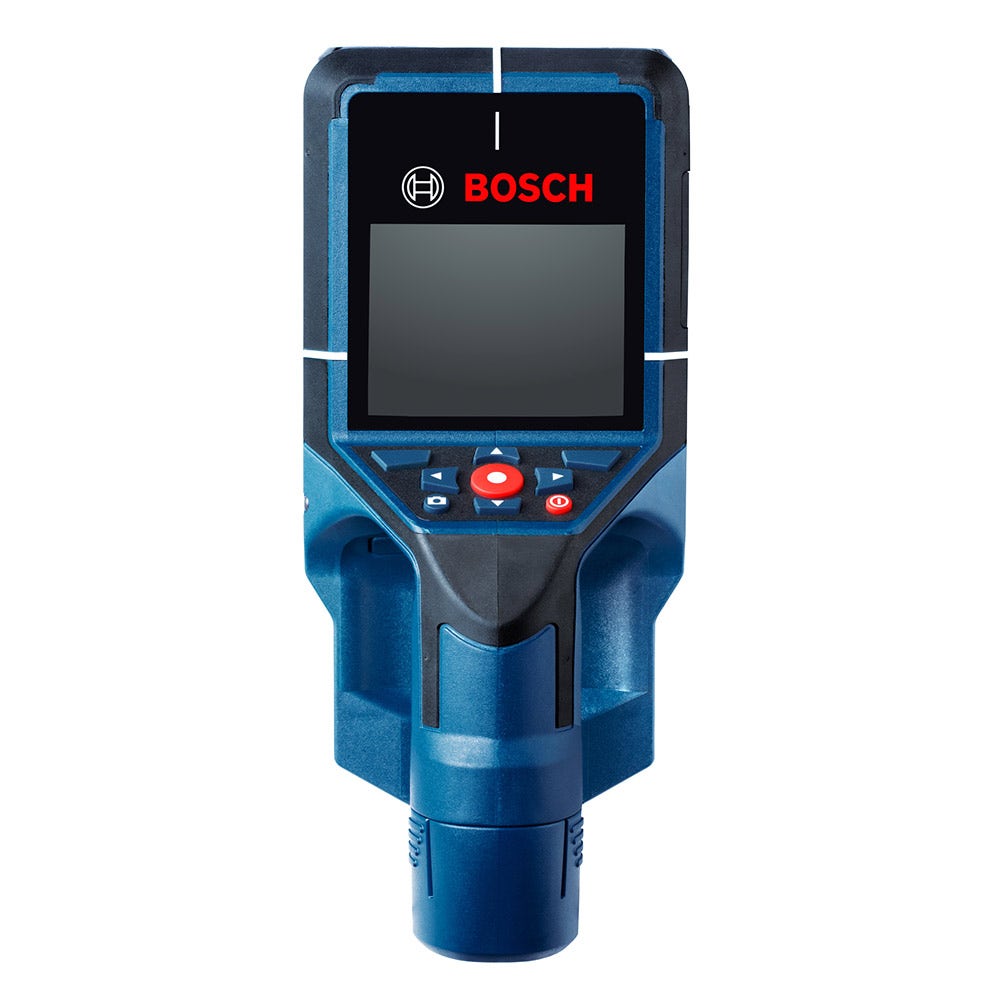

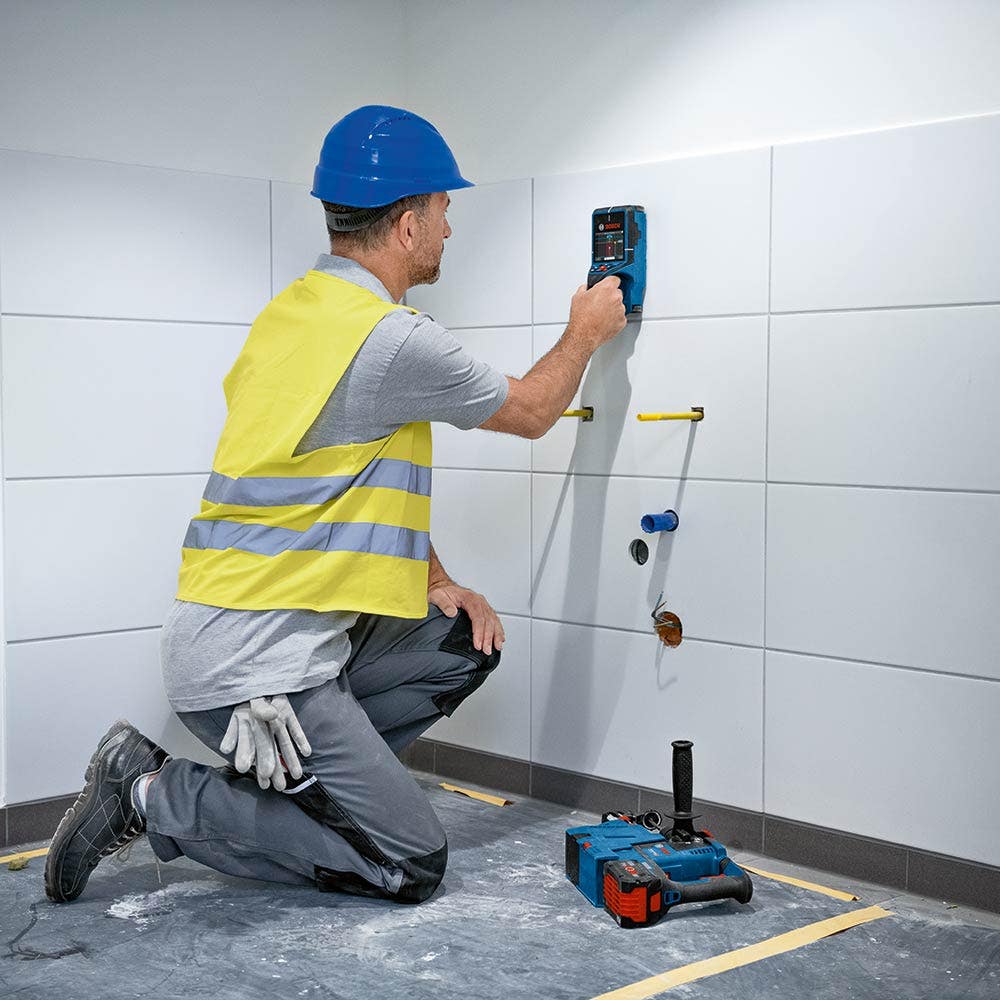

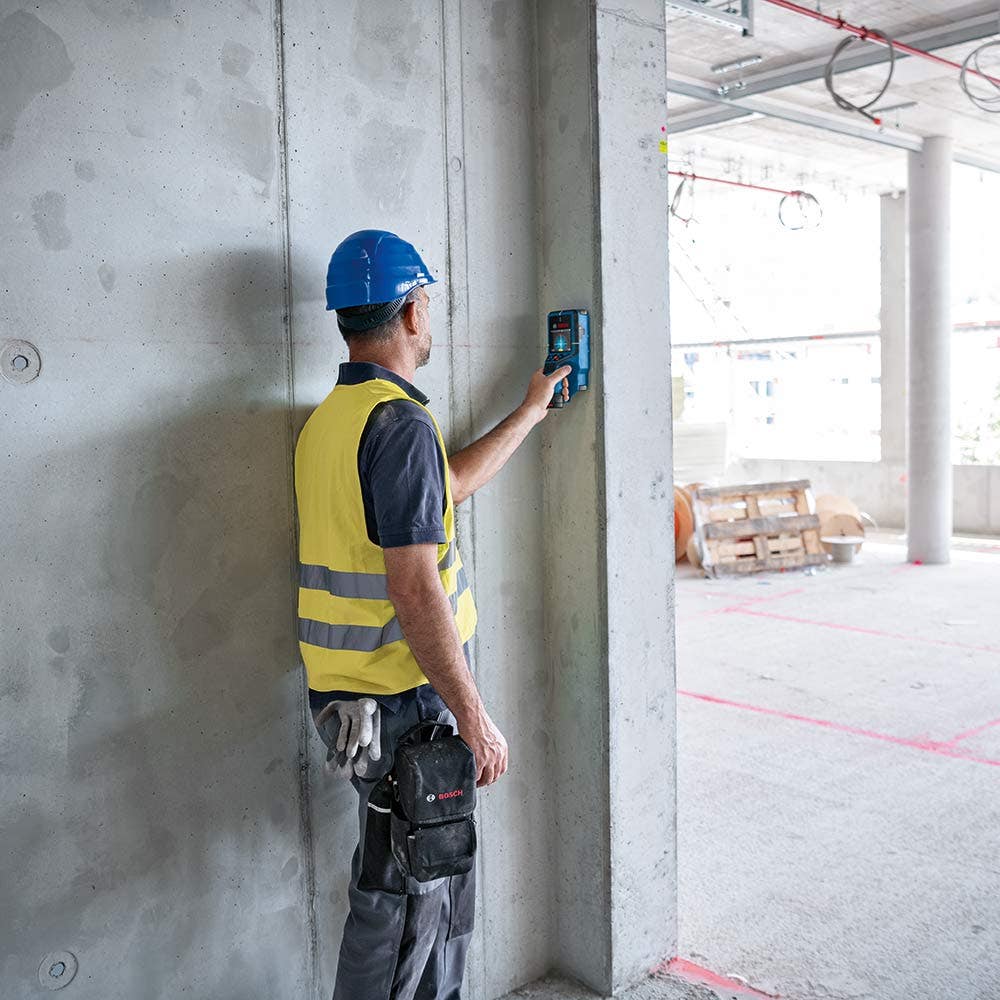

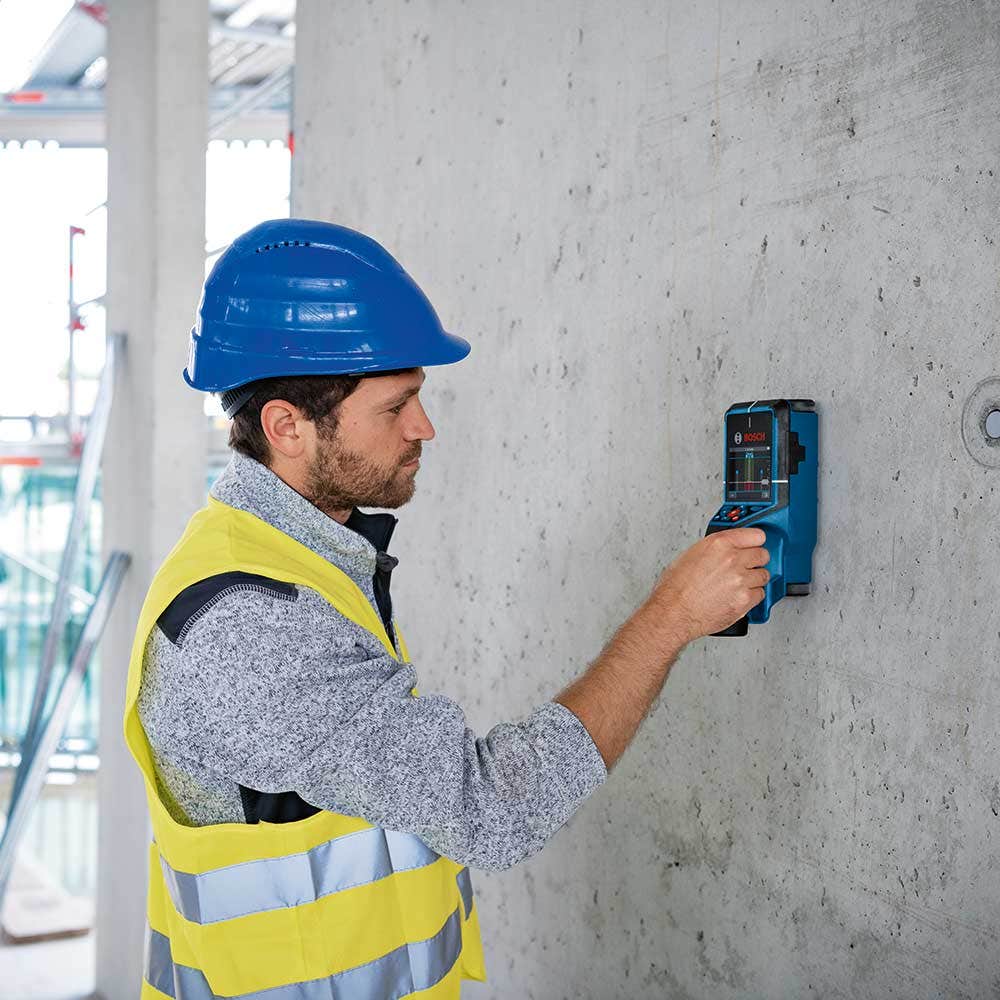

The D-tect 200 Professional detects all common objects and illustrates them clearly while making documentation easy. Equipped with Bosch Radar Technology and an improved HMI, it stands for safer and more precise detection. Multiple view options allow the ideal application for different situations, such as Spot View, that makes detection in hard-to-reach locations easier. The detector enables instant documentation which allows data to be transferred via USB-C or MicroSD-Card connection.

• More depth for better safety - increased maximum detection depth to 200mm with object depth indication

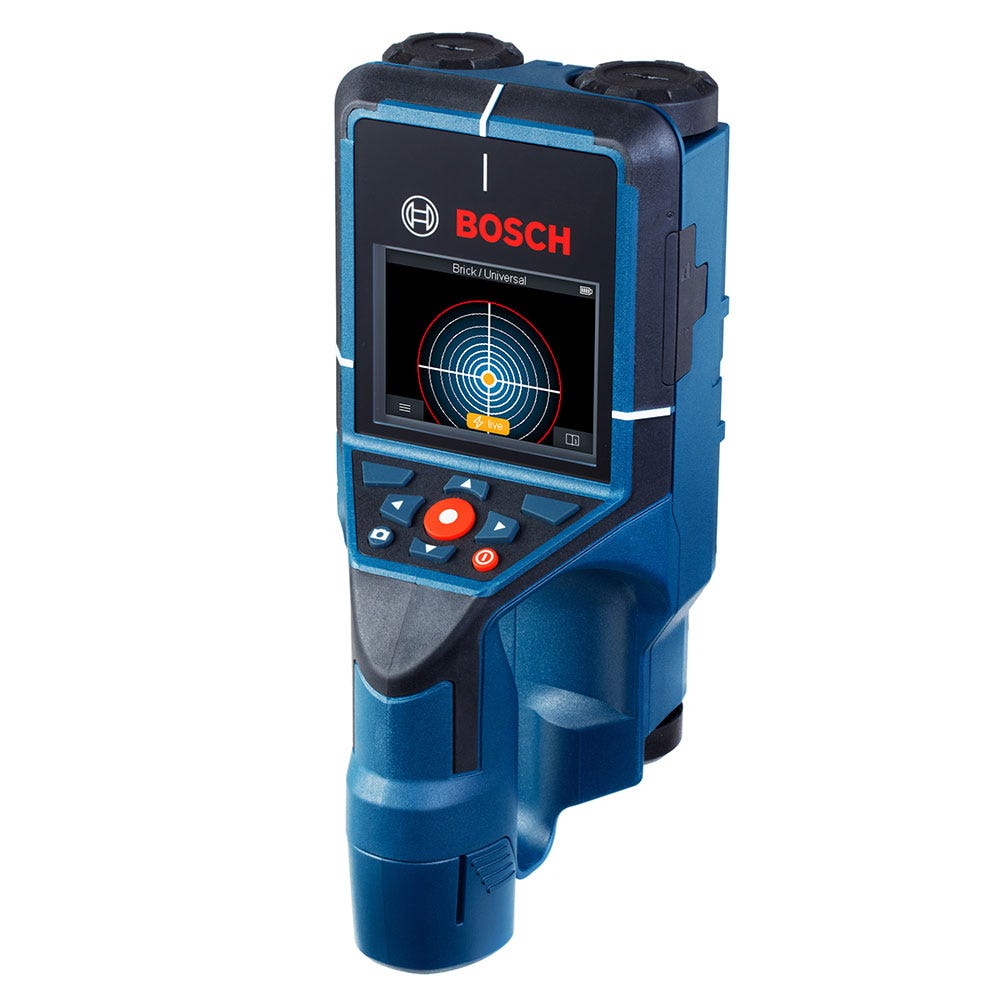

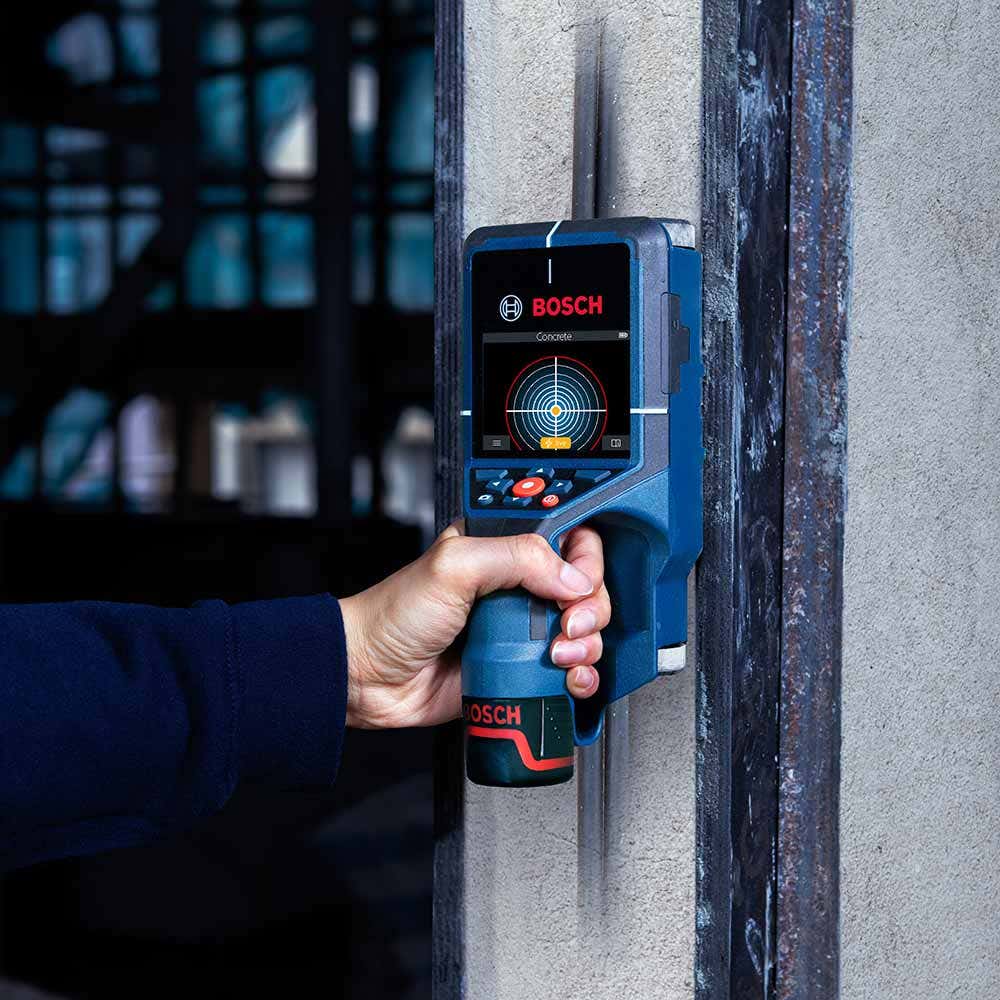

• All-round detection - detection of all common objects, even in narrow spots with the unique spot mode

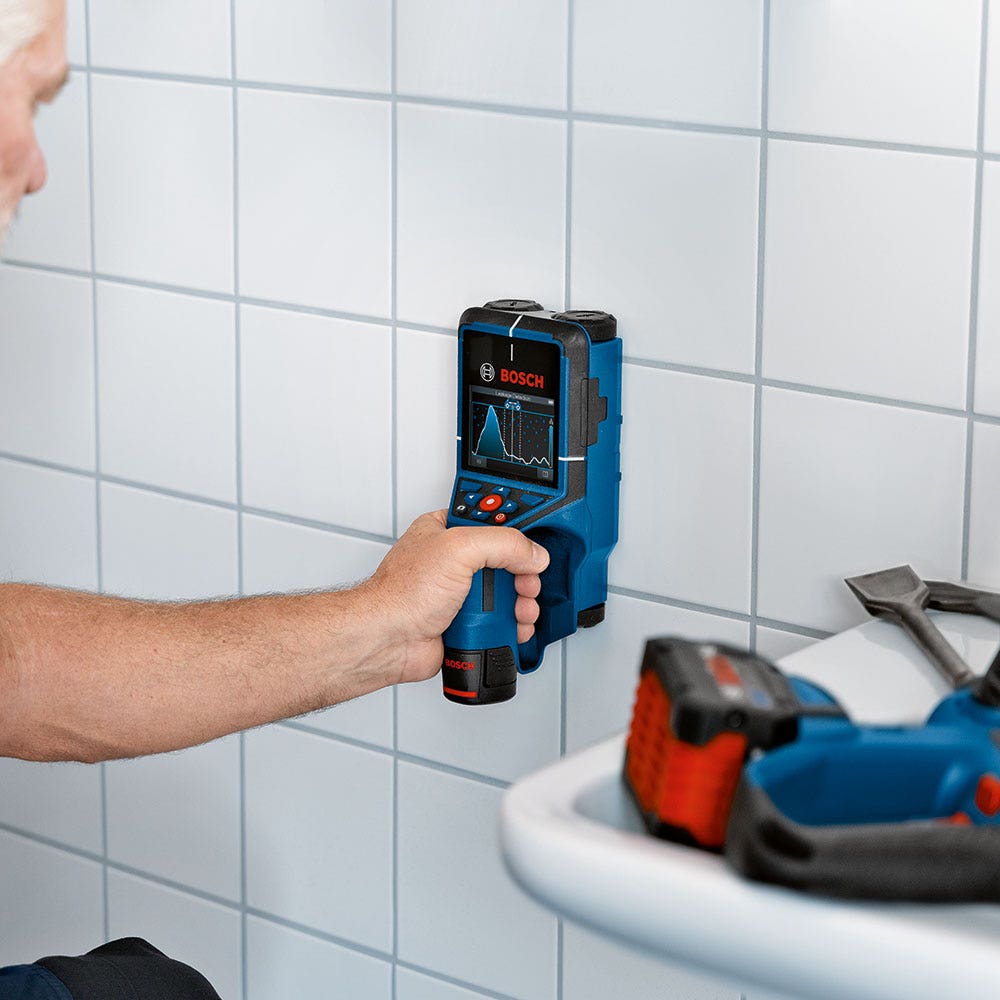

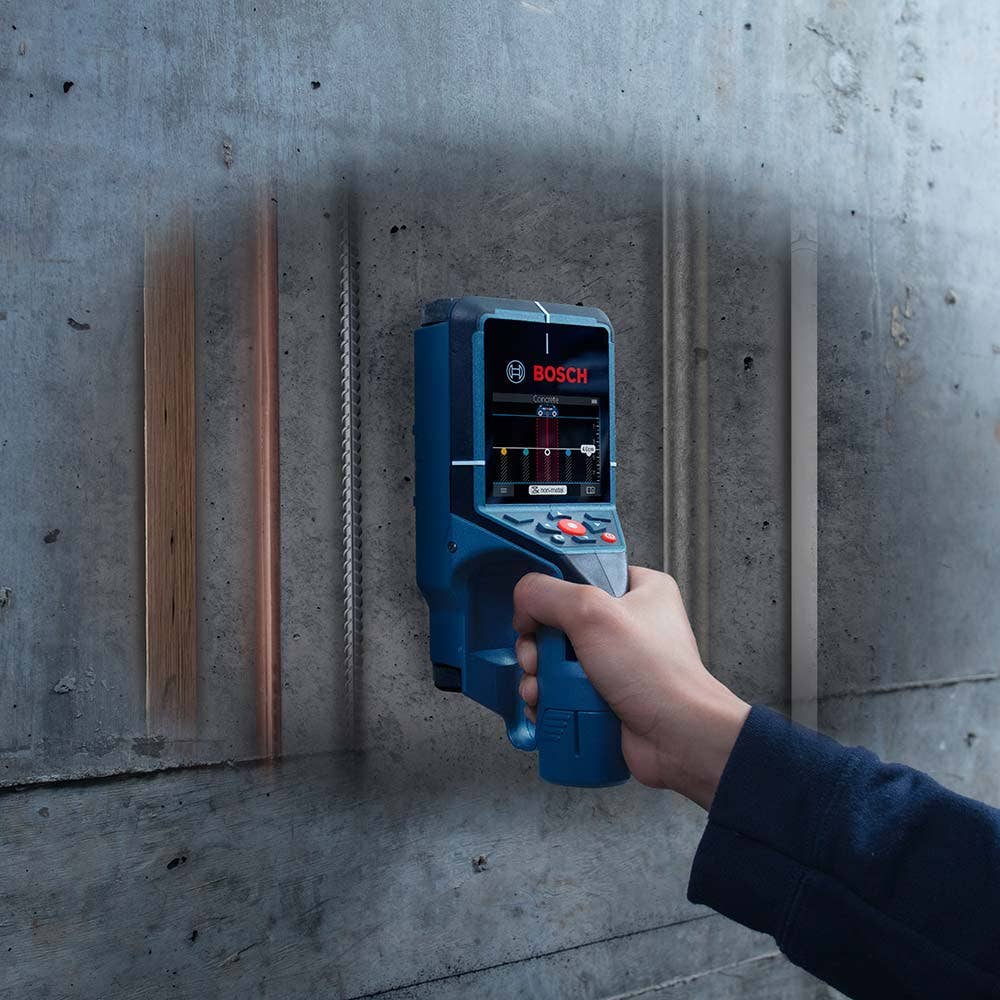

• See the unseen - clear visualisation of detected objects including the new leakage detection function through the intuitive HMI
• The professional power tools for construction, woodworking, metal working from Bosch

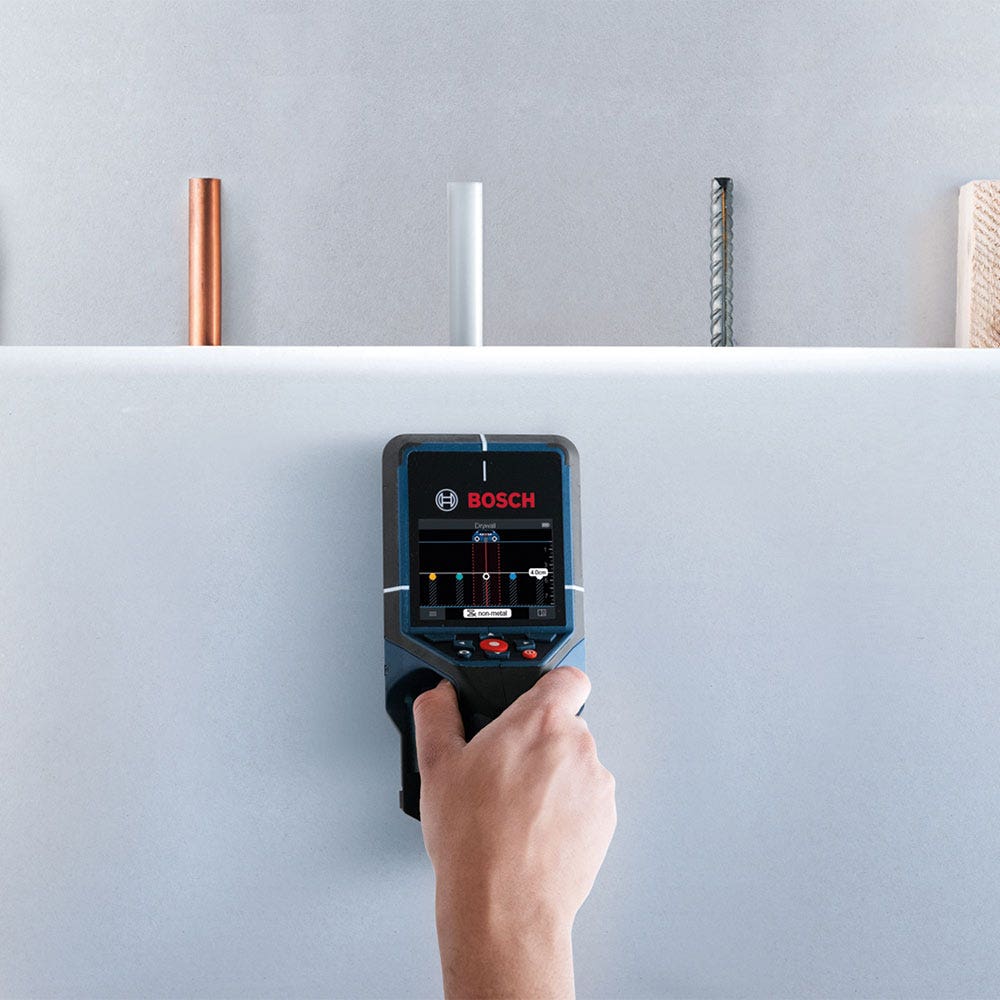

• Detectable objects: magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, low-voltage & data cables (three-phase power cables, cavities), non0live cables, wooden substructures, water-filled plastic pipes, empty plastic pipes

Specifications

• Max. detection depth: 200mm
• Detection depth:

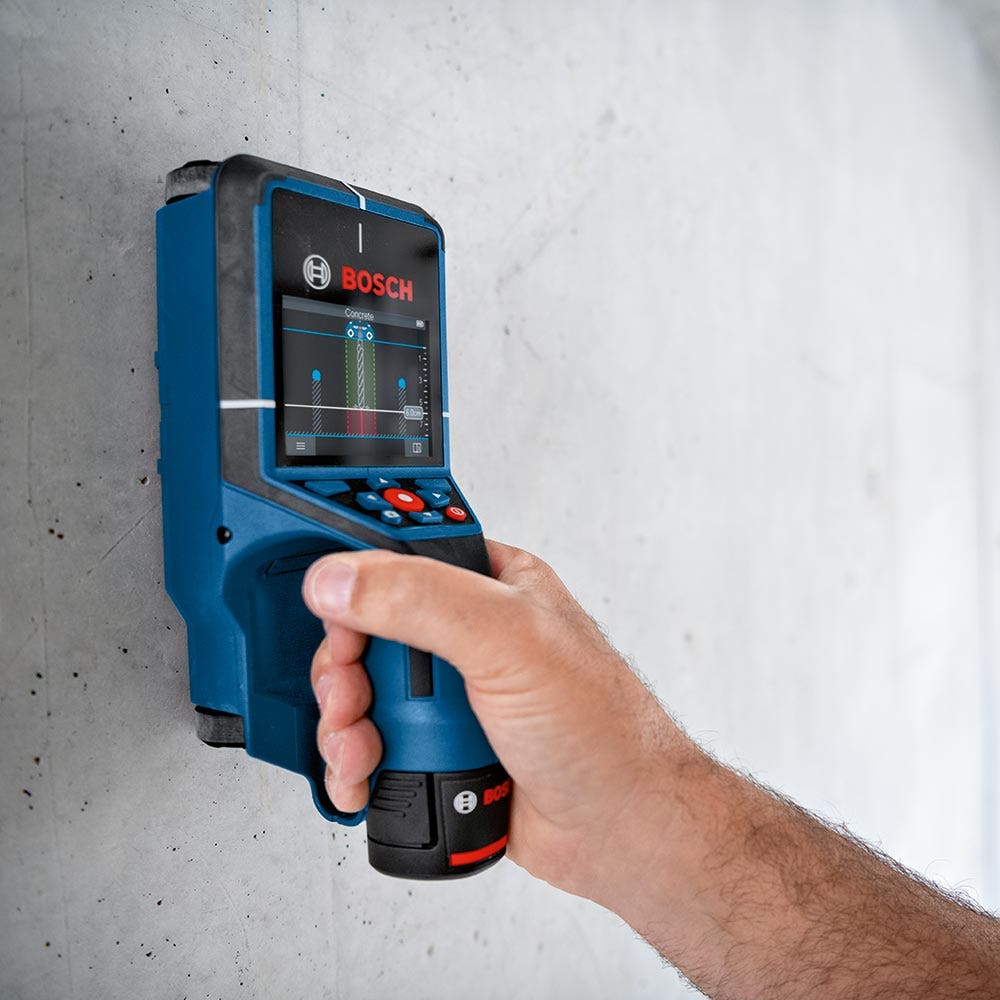

  • Dry concrete, max. 200mm
  • Early age concrete, max. 60mm
  • Other wall types, max. 80mm
  • Magnetic metal, max. 200mm
  • Non-magnetic metal, max. 80mm
  • Live cables, max. 80mm
  • Wooden substructures, max. 38mm
• Accuracy: ±5 mm
• Views: object view, spot view, signal view, signal view 2D
• Wall types: concrete, early age concrete, drywall, brick/universal, horizontal coring brick, vertical coring brick, panel heating
• Dust and splash protection: IP 5X

Includes

• 1 x AA1 Alkaline Battery Adapter
• 4 x 1.5 V LR6 battery (AA)
• 1 x USB-C Cable
• 1 x Hand Strap
• 1 x Pouch
