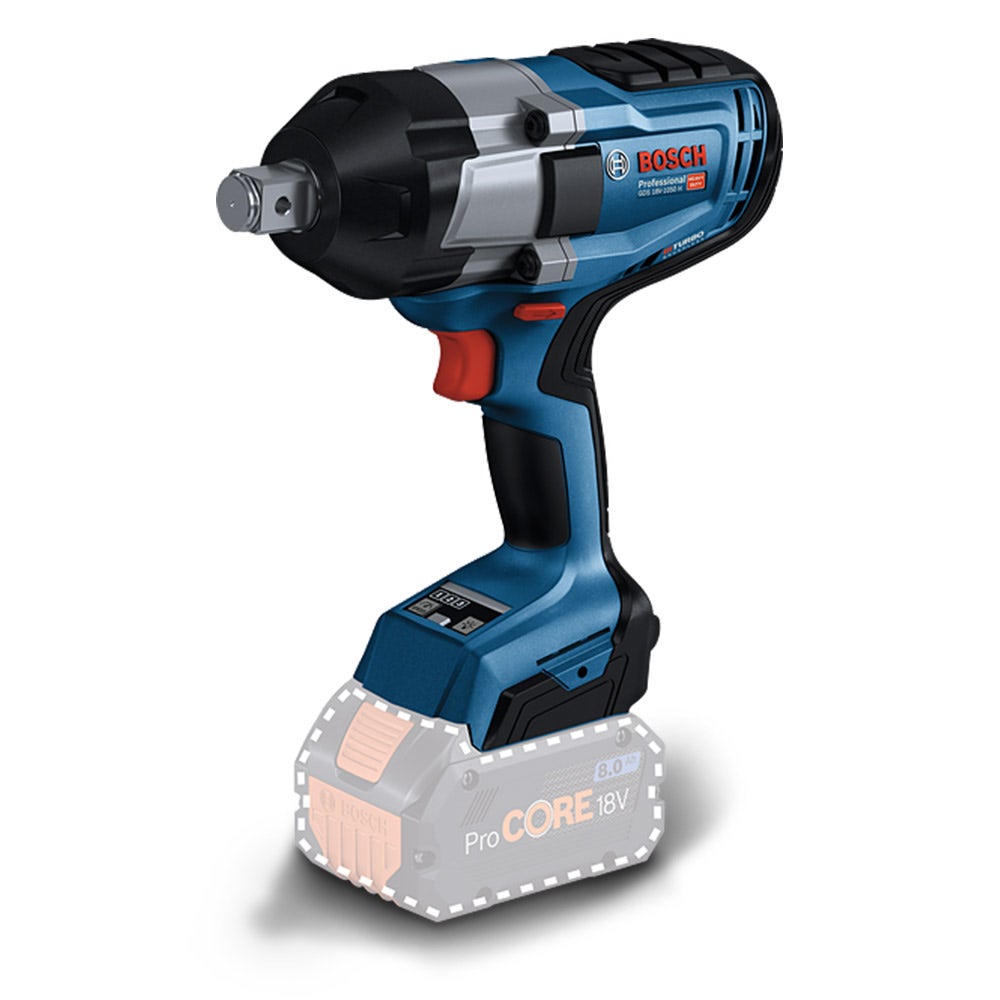

The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with a brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximized for ProCORE18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 Nm for particularly challenging working environments. The high versatility in power control is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.

The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah.

The GDS 18V-1050 H Professional comes with additional figures like ECP, EMP, a tool status indicator, LED light, a 3/4" tool holder with friction ring plus through-hole, and a ladder clip.

• Impressive power with cordless freedom thanks to ProCORE18V batteries and brushless motor
• High-performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
• Ideal versatility and controlled power due to 3-speed/torque settings

Specifications:

• Torque adjustment range, min./max., 1st level: 0/350 Nm
• Torque adjustment range, min./max., 2nd level: 0/750 Nm
• Torque adjustment range, min./max., 3rd level: 0/1050 Nm
• No-load speed: 0-1,750 rpm
• No-load speed (1st level): 0-800 rpm
• No-load speed (2nd level): 0-1,200 rpm
• No-load speed (3rd level): 0-1,750 rpm
• Torque settings: 3
• Torque, max.: 1,050 Nm
• Impact rate: 0-2,600 bpm
• Impact rate (1st level): 0-1,600 bpm
• Impact rate (2nd level): 0-2,400 bpm
• Impact rate (3rd level): 0-2,600 bpm
• Tool holder: 3/4'' Square
• Breakaway torque, max.: 1,700 Nm
• Screw diameter: M 10 - M 24

*Battery and charger not included

Specification

Specifications

Videos & Manuals

Videos

Bosch Professional BITURBO Brushless Revolutionary Performance

All About Bosch Professional BITURBO Brushless

BOSCH 18V BITURBO Brushless 3/4inch Impact Wrench Skin GDS 18V-1050 H 06019J8500

Manuals

• Product Data
