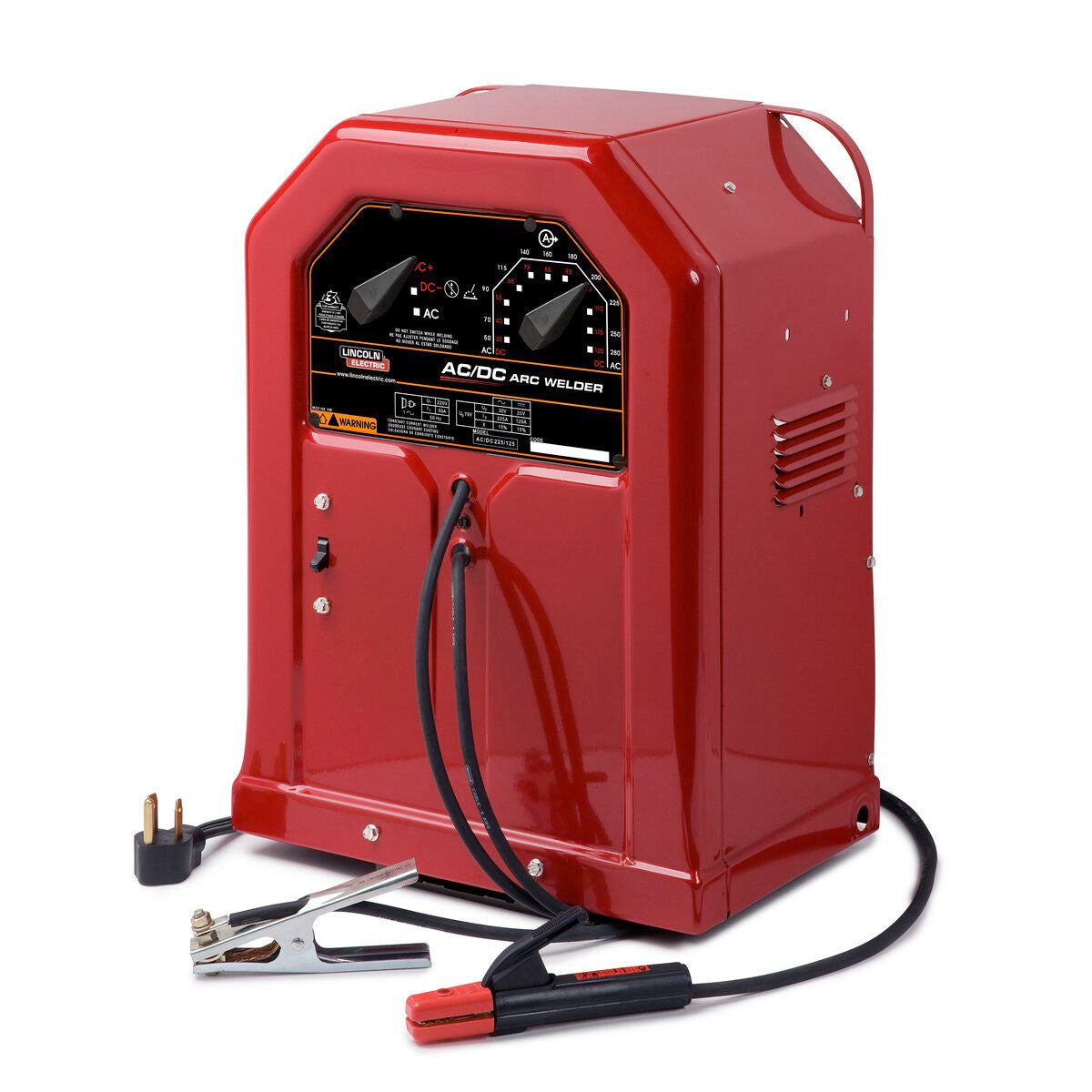

Tackle more tasks with AC/DC. The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired.

Features & Benefits

Tackle more tasks with AC/DC. The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired. Easy to operate - With front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting. Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes. 125 amp DC output - Enough for most 1/8” (3.2 mm) electrodes. 225 amp AC output - Enough for 3/16” (4.8 mm) diameter general purpose mild steel electrodes and 5/32” (4.0 mm) sizes of other electrodes. NEMA rated, UL listed and CSA approved.

Process

Stick

Processes

Stick

Welding Amperage Range

AC: 40 - 225 Amps; Max. OCV: 79V; DC: 30-125 Amps; Max. OCV: 73V

Model

AC/DC 225/125 60HZ

Weight (lb)

114 LB

Included in Package

Insulated electrode holder and cable, heavy-duty work clamp and cable, input cable with attached plug

Duty Cycle

AC: 225A/25V/20% | DC: 125A/25V/20%

Dual Voltage

No

Dimensions (mm)(HxWxD)

24" x 17.25" x 12"

Digital Display

No

Input Power

230/1/60

Input Current

DC: 36AAC:50A

Mode

CC

Polarity

AC/DC

Output Range

40-225A AC30-125A DC

Rated Output

225A AC/25V/20%125A DC/25V/20%

Typical Application

Home/Farm/Shop; Maintenance Repair; Light Fabrication; Hardfacing

Dimensions

17.25in x 24in x 12in (438mm x 610mm x 305mm)

Warranty

3 Years

Weight

114lbs. (51.71kg)

• Insulated electrode holder and cable.
• Heavy duty work clamp and cable.
• Input cable with attached plug.
